Waterway Viper 3711621-0V 56-Frame 1-Speed Spa Pump 4HP 230V
Description
The Viper Spa Pump has two double shielded ball bearings with moisture resistant grease for quieter operation and longer life. It is thermally protected to extend the life expectancy of the motor. A large 2-1/2" intake creates improved flow performance and reduced noise while a large 8" diameter wet end allows for increased volume capacity.
Branch Availability
content loaded
Specifications
- BrandWaterway
- Amps High Speed12
- Shipping Dimensions8.63 x 9.38 x 18.75 inch
- Amps Low Speed12
- ApplicationSpa
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight40.93 pound
- Frequency Rating (Hz)60
- Green or Energy Efficient ProductTrue
- Horsepower4 horse power
- Master Carton Quantity1
- Motor Speed1-Speed
- Pallet Quantity1
- Voltage230V
- UPC Code806105390103
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

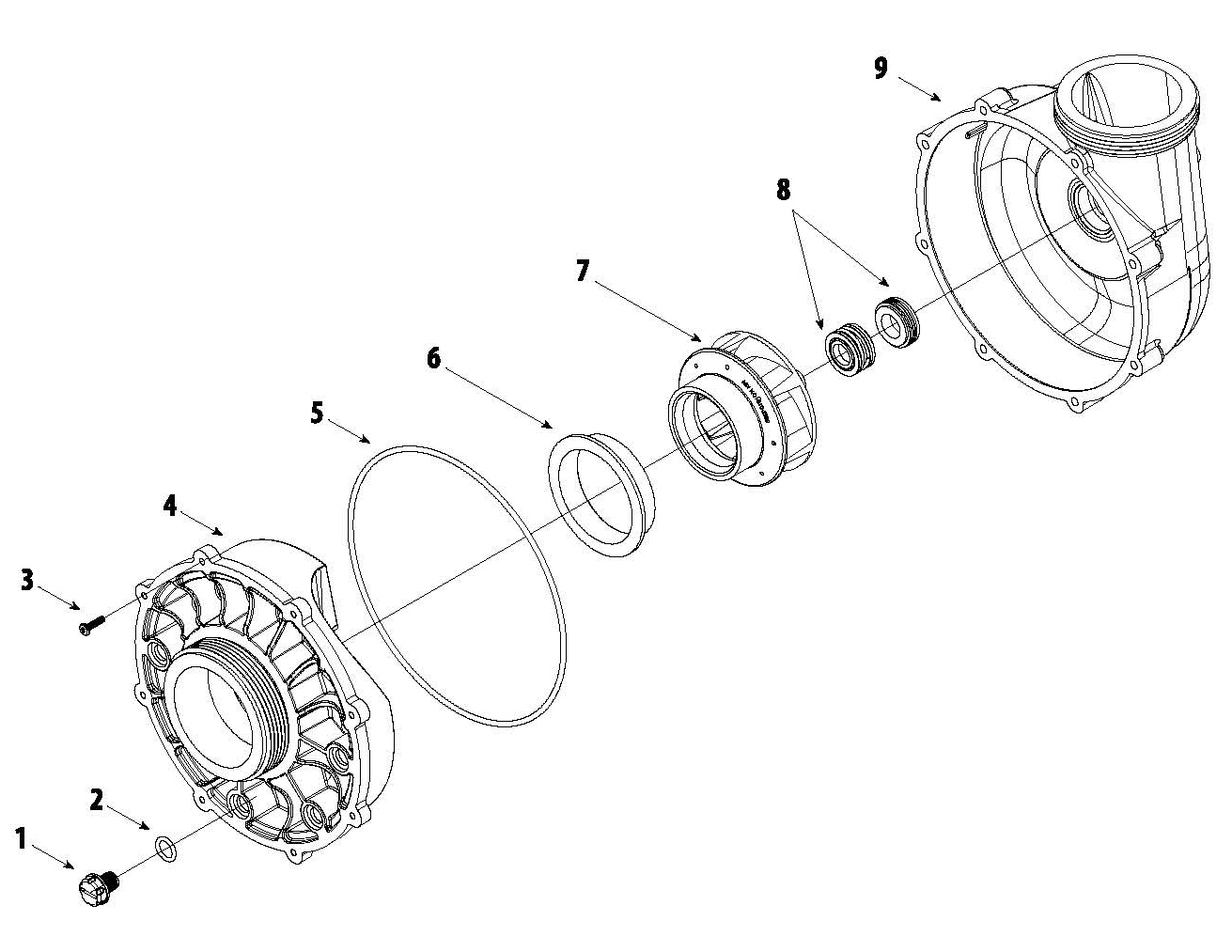

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
715-1201
WWP-101-1201
Product #: WWP-101-1201
Mfg #: 715-1201
2
2
O-39-9-10
SPG-601-1177
Product #: SPG-601-1177
Mfg #: O-39-9-10
2
2
2
3
3
819-1110
WWP-101-8051
Product #: WWP-101-8051
Mfg #: 819-1110
4
5
5
805-0264
WWP-851-6435
805-0264 VIPER PUMP ORING
Product #: WWP-851-6435
Mfg #: 805-0264
6
7
7
310-2260
Impeller Assembly - 2HP
Product #:
Mfg #: 310-2260
-
-
310-2270
WWP-85-2201
310-2270 3HP VIPER IMPELLER ASSY
Product #: WWP-85-2201
Mfg #: 310-2270
-
-
310-2200
WWP-85-2200
310-2200 4HP VIPER IMPELLER ASSY
Product #: WWP-85-2200
Mfg #: 310-2200
-
-
310-2280
Impeller Assembly - 5HP
Product #:
Mfg #: 310-2280
8
8
8
319-3010B
WWP-101-1385
319-3010B SUPREME PUMP PUMP SEAL KIT
Product #: WWP-101-1385
Mfg #: 319-3010B
