Universal H-Series Liquid Propane Heater 250K BTU 120/240V

Product #:HAY-15-1013

Mfg. Part #:W3H250FDP

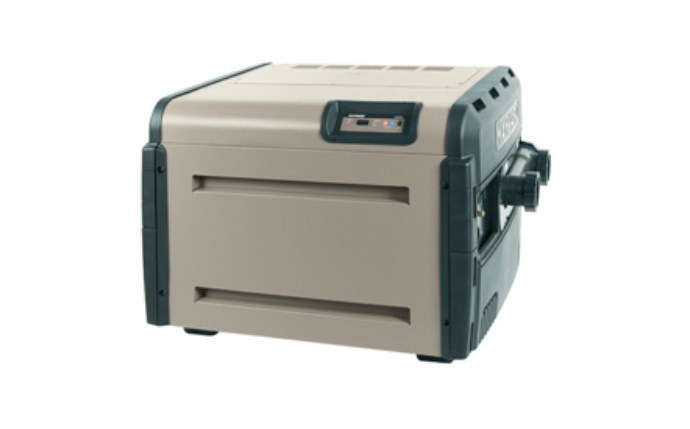

Hayward Universal H-Series W3H250FDP Liquid Propane Heater 250K BTU 120/240V

Hayward

Universal H-Series Liquid Propane Heater 250K BTU 120/240V

Product #:HAY-15-1013

Mfg. Part #:W3H250FDP

Description

Hayward Universal H-Series W3H250FDP is an energy efficient, high performance, installation adaptable commitment to the pool service professional.

Documents

Feature Bullets

  • Standard cupro nickel heat exchanger
  • Excellent salt water and chemical corrosion resistance
  • Exclusive "Totally Managed" cupro nickel heat exchanger water flow
  • Same water velocity through all tubes for faster heating
  • Patented header by-pass design
  • Up to 18 percent savings by reducing pump run-time
  • 2in x 2 1/2in CPVC union plumbing connections
  • Common union for installation or service, adapts to larger plumbing recommended for greater efficiencies
  • Low NOx emissions - meets clean air quality standards

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationPool, Spa
    • Shipping Dimensions33.3 x 32.8 x 30.6 inch
    • BTU Output250000 British thermal unit
    • ChannelPool Equipment
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Each Product Weight171 pound
    • Fuel TypePropane
    • Heat Exchanger MaterialCupro Nickel
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity3
    • Product Weight171.3 pound
    • UPC Code0610377387248

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

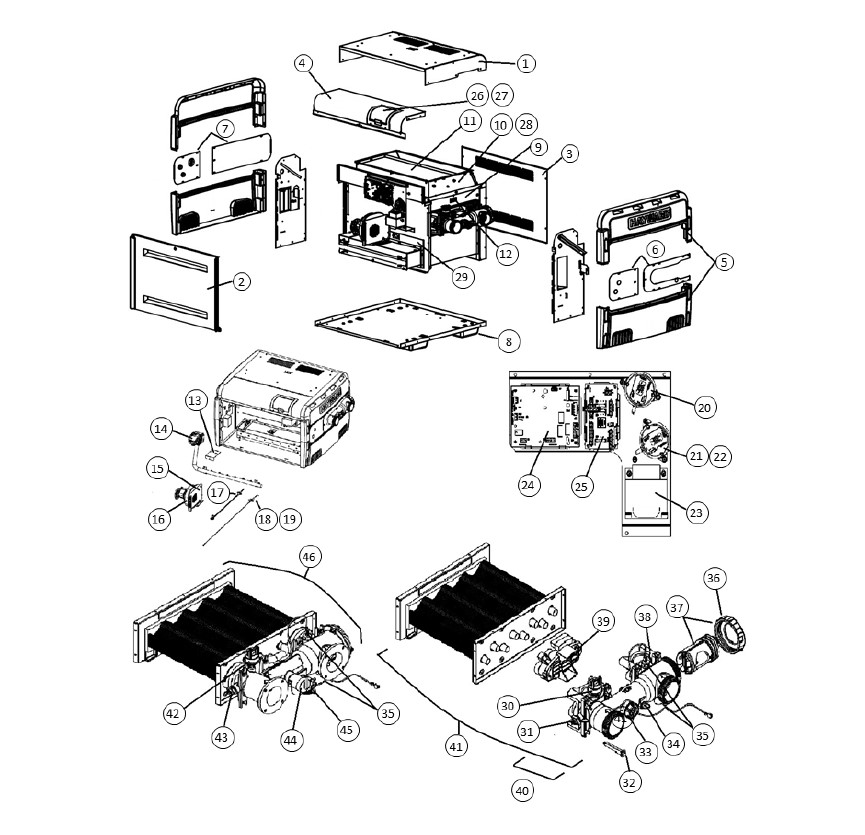

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    FDXLJKT1250
    HAY-151-3354
    Product #: HAY-151-3354
    Mfg #: FDXLJKT1250
    1
    1
    FDXLJKT1250A
    HAY-151-3353
    250K FD Series Gray Jacket Top and Flue Cover
    Product #: HAY-151-3353
    Mfg #: FDXLJKT1250A
    2
    2
    FDXLFAD1250
    FRONT ACCESS DOOR ASSY (PLASTIC HEADER)
    Product #:
    Mfg #: FDXLFAD1250
    2
    2
    FDXLFAD1250A
    HAY-151-3349
    250K FD Series Gray Front Access Door Assembly
    Product #: HAY-151-3349
    Mfg #: FDXLFAD1250A
    3
    3
    FDXLRAD1250
    HAY-151-3329
    Product #: HAY-151-3329
    Mfg #: FDXLRAD1250
    3
    3
    FDXLRAD1250A
    HAY-151-3327
    Product #: HAY-151-3327
    Mfg #: FDXLRAD1250A
    4
    4
    FDXLTFP1251
    HAY-151-3283
    Product #: HAY-151-3283
    Mfg #: FDXLTFP1251
    4
    4
    FDXLTFP1251A
    HAY-151-3284
    Product #: HAY-151-3284
    Mfg #: FDXLTFP1251A
    5
    5
    FDXLBEC1930
    BOTH END CAPS
    Product #:
    Mfg #: FDXLBEC1930
    6
    6
    FDXLHTP1931
    HEADER SIDE TRIM PANELS
    Product #:
    Mfg #: FDXLHTP1931
    7
    7
    FDXLRTP1931
    RETURN SIDE TRIM PANELS
    Product #:
    Mfg #: FDXLRTP1931
    8
    8
    FDXLPBL1930
    HAY-151-0042
    H-Series Base Leg Set of 4
    Product #: HAY-151-0042
    Mfg #: FDXLPBL1930
    9
    9
    FDXLFCS1931
    HAY-151-0087
    H Series Flue Collector Side Panel with High Limit
    Product #: HAY-151-0087
    Mfg #: FDXLFCS1931
    10
    10
    FDXLRGK1251
    HAY-151-3361
    Product #: HAY-151-3361
    Mfg #: FDXLRGK1251
    11
    11
    FDXLHBP1250
    HAY-151-3292
    Product #: HAY-151-3292
    Mfg #: FDXLHBP1250

    Wholegoods

    There are no wholegoods available.
