Pentair

Ultratemp® Heat Pump 143K BTU 230V

Product #:PUR-15-0934

Mfg. Part #:460934


Pentair 460934 Ultratemp® 140 Heat Pump 143K BTU 230V Almond

Pentair

Ultratemp® Heat Pump 143K BTU 230V

Product #:PUR-15-0934

Mfg. Part #:460934

Description

Best in class performance and efficiency, environmentally superior, more standard features than any other. With today’s record energy costs, there’s never been a better time to invest in a heat pump. Compared to gas, oil or electric heaters, UltraTemp® high performance heat pumps use just a fraction of the energy to generate the same amount of heat. In fact, just 20¢ worth of electricity produces $1.00 worth of heat generated by other methods. That means more comfortable water temperatures and longer swimming seasons for you and your family.

Feature Bullets

  • 100% pure titanium heat exchanger assures corrosion-free performance for extra long life
  • LCD control board displays an intuitive, menu-driven readout with easy to follow, full word messages - no more codes.
  • AutoSet (time clock over-ride) feature monitors water temperature and turns the water circulation pump on and off as needed to maintain desired pool temperatures
  • Automatic defrost feature senses refrigerant temperature and prevents UltraTemp from freezing, allowing the heat pump to operate at even lower temperatures
  • Compatible with all automated control packages
  • Long-life corrosion resistant plastic composite cabinet stands up to severe climates and pool chemicals
  • Emerson Copeland scroll compressor on 60 Hz, 1-phase models
  • ETL listed for safe operation
  • Thermostatic expansion valve (TXV) controls refrigerant flow for optimum efficiency and BTU output over a wider operating range
  • Highest efficiency available, meets or exceeds existing codes and standards
  • BTU and efficiency performance independently certified by the Air-Conditioning, Heating and Refrigeration Institute, AHRI.
  • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • ApplicationOutdoor, Pool, Spa
    • Shipping Dimensions43 x 34 x 51 inch
    • BTU Output145000 British thermal unit
    • Cabinet Depth33.8 inch
    • Cabinet Height45.5 inch
    • Cabinet Width38.9 inch
    • ChannelNone
    • Commercial, Residential, or ProfessionalResidential
    • Compressor TypeScroll
    • Control TypeDigital
    • Each Product Weight347 pound
    • Electrical Input7.2 kilowatts
    • Flow Rate Max120 gal/min
    • Flow Rate Min30 gal/min
    • Frequency Rating (Hz)60
    • Green or Energy Efficient ProductTrue
    • Heat Exchanger MaterialTitanium
    • Housing MaterialPlastic
    • Maximum Circuit Breaker50 amperage
    • Min Circuit Ampacity43 amperage
    • Minimum Sell Quantity1
    • PhaseSingle
    • Refrigerant ModelR410A
    • Standards ApprovalsAHRI Certified
    • Voltage230V
    • UPC Code788379859794

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

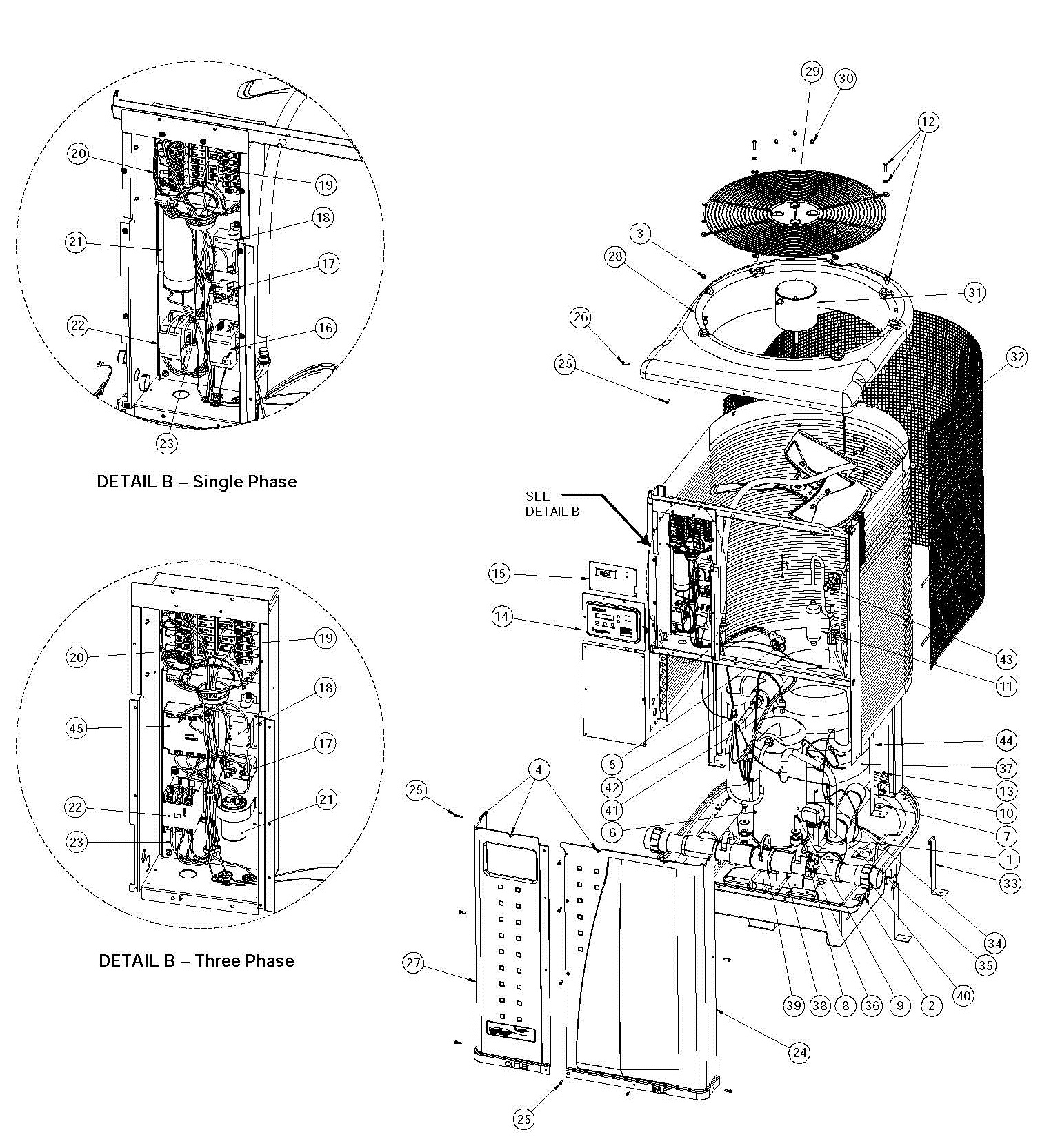

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    473665Z
    PUR-151-1802
    Product #: PUR-151-1802
    Mfg #: 473665Z
    2
    2
    470284
    PUR-151-7502
    Product #: PUR-151-7502
    Mfg #: 470284
    3
    3
    473285
    PUR-151-7482
    Product #: PUR-151-7482
    Mfg #: 473285
    4
    4
    470281Z
    PUR-151-7498
    Nut U Clip D06437-10 Tinnerman
    Product #: PUR-151-7498
    Mfg #: 470281Z
    5
    5
    473732Z
    PUR-151-0499
    Product #: PUR-151-0499
    Mfg #: 473732Z
    6
    6
    473734Z
    PUR-151-7713
    Product #: PUR-151-7713
    Mfg #: 473734Z
    7
    7
    473295Z
    PUR-151-7484
    Product #: PUR-151-7484
    Mfg #: 473295Z
    8
    8
    473736
    PUR-151-0697
    Product #: PUR-151-0697
    Mfg #: 473736
    9
    9
    473745Z
    PUR-151-7505
    Product #: PUR-151-7505
    Mfg #: 473745Z
    10
    10
    98219800
    PAC-101-1101
    Product #: PAC-101-1101
    Mfg #: 98219800
    11
    11
    473121Z
    PUR-151-0490
    Product #: PUR-151-0490
    Mfg #: 473121Z
    12
    12
    470441
    PUR-151-7533
    Product #: PUR-151-7533
    Mfg #: 470441
    13
    13
    71406
    071406 .25-20 SS HEX HEAD NUT
    Product #:
    Mfg #: 71406
    14/15
    14/15
    472734
    PUR-151-2734
    Product #: PUR-151-2734
    Mfg #: 472734
    16
    16
    473603Z
    PUR-151-0374
    Product #: PUR-151-0374
    Mfg #: 473603Z
