Raypak
Raypak 407A Natural Gas Low NOx Asme Pool and Spa Heater #26 399K BTU
Product #:RAY-15-9295
Mfg. Part #:009295
- This product is obsolete.
- The superceded product was not found.

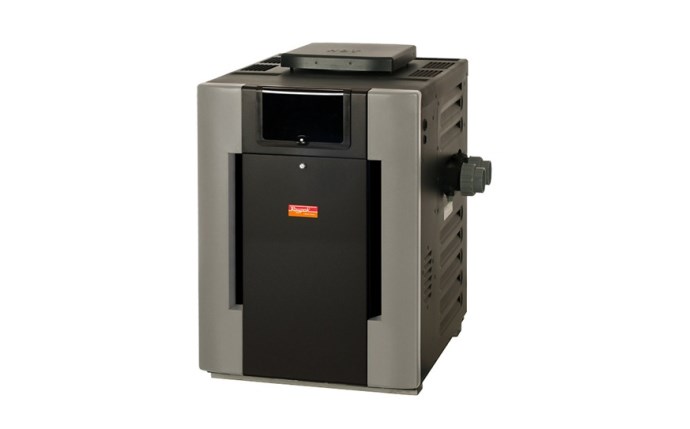

Raypak C-R407A Digital Cast Iron Low NOx ASME Pool/Spa Heater; 399000 BTU, Natural, #26 Burner, Copper Tubing
Raypak
Raypak 407A Natural Gas Low NOx Asme Pool and Spa Heater #26 399K BTU
Product #:RAY-15-9295
Mfg. Part #:009295
Description
Raypak Low Emissions units use combustion control to minimize levels of nitrogen oxides (NOx). These units meet emissions standards in all Low NOx areas, from Los Angeles (SCAQMD rule 1146.2 certified) to the San Joaquin Valley (SJAPCD rule 4308) and any
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRaypak
- ApplicationPool, Spa
- Shipping Dimensions38 x 34 x 30.5 inch
- BTU Input399000 British thermal unit
- Burner Orifice Size#26
- Cabinet Depth28 inch
- Cabinet Height31.8125 inch
- Cabinet Width29 inch
- Commercial, Residential, or ProfessionalCommercial
- Control TypeDigital Electronic
- Each Product Weight266 pound
- Elevation Max5000 foot
- Elevation Min0 foot
- Flow Rate Max125 gal/min
- Flow Rate Min125 gal/min
- Flue Diameter9 inch
- Frequency Rating (Hz)60
- Fuel TypeNatural Gas
- Gas Connection0.75 inch
- Gas Connection FITNPT
- Green or Energy Efficient ProductTrue
- Header MaterialCast Iron, Glass
- High Altitude ModelFalse
- Indoor Drafthood58.5 inch
- Master Carton Quantity1
- Minimum J12.5 inch
- Minimum Sell Quantity1
- Pallet Quantity1
- PhaseSingle
- Stackless Outdoor Top34 inch
- Standards ApprovalsASME Certified
- Tubing MaterialCopper
- Voltage115V, 230V
- UPC Code840891013525
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

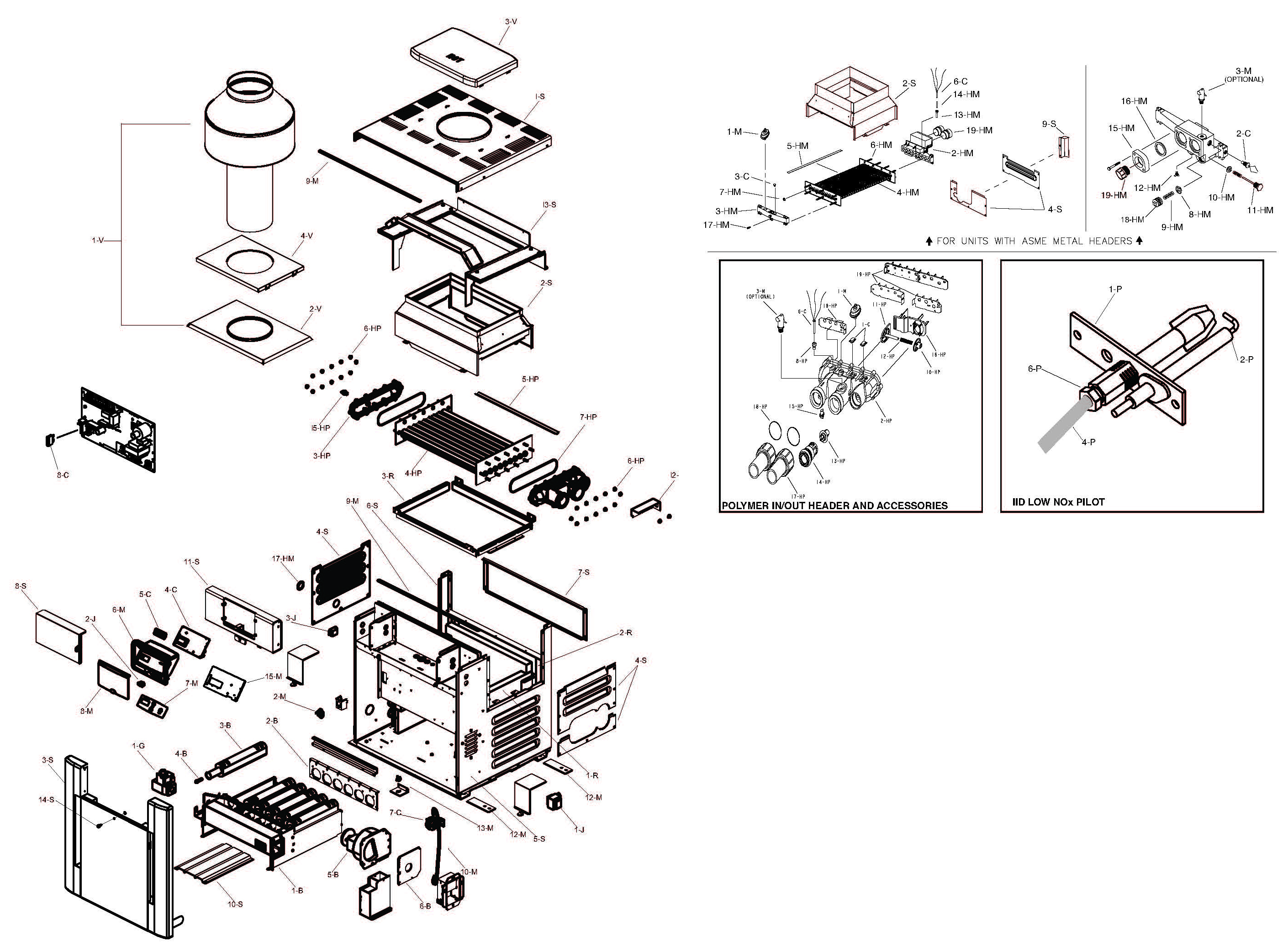

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
010346F
RAY-151-0346
Product #: RAY-151-0346
Mfg #: 010346F
1-B
1-B
010087F
RAY-151-0087
Product #: RAY-151-0087
Mfg #: 010087F
2-B
2-B
010257F
RAY-151-0257
Product #: RAY-151-0257
Mfg #: 010257F
3-B
3-B
310732
RAY-151-3620
310732 207- 407 BURNER
Product #: RAY-151-3620
Mfg #: 310732
4-B
4-B
351632
Burner Orifice Nat. #26 (0-5000)
Product #:
Mfg #: 351632
5-B
5-B
010042F
RAY-151-1251
Product #: RAY-151-1251
Mfg #: 010042F
7-B
6-B
6-B
010341F
RAY-151-8099
Product #: RAY-151-8099
Mfg #: 010341F
1-C
2-C
2-C
600892B
RAY-151-3609
Product #: RAY-151-3609
Mfg #: 600892B
3-C
3-C
600893B
RAY-151-3610
Product #: RAY-151-3610
Mfg #: 600893B
4-C
4-C
013464F
RAY-151-3724
013464F IID PC BOARD CONTROLLER (AFTER 11/2003)
Product #: RAY-151-3724
Mfg #: 013464F
5-C
5-C
013640F
RAY-151-3850
Product #: RAY-151-3850
Mfg #: 013640F
6-C
6-C
009577F
RAY-151-1208
Product #: RAY-151-1208
Mfg #: 009577F
7-C
7-C
010355F
RAY-151-1397
Product #: RAY-151-1397
Mfg #: 010355F
Wholegoods
There are no wholegoods available.
