Quiet Technology™ Digital Pool Heat Pump 117K BTU 208/230V

Product #:RHM-15-3856

Mfg. Part #:014700

  • This product is obsolete.
  • The superceded product was not found.

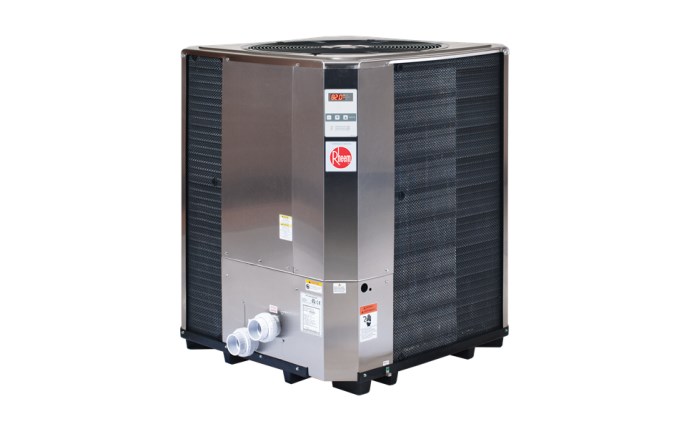

Rheem 014700 Quiet Technology™ Pool Heat Pump; 117K BTU, 208/230V, Digital Control, Titanium Tubing

Rheem

Quiet Technology™ Digital Pool Heat Pump 117K BTU 208/230V

Product #:RHM-15-3856

Mfg. Part #:014700

Description

The Rheem Quiet Technology Series stainless steel heat pump is our premium series heat pump. It’s specifically designed to take a beating in rough coastal climates where salt air can shorten the life of most outdoor appliances, with sleek, appliance grade

Documents

Feature Bullets

  • Stainless Steel Cabinet
  • Venturi Fan Cowling - High-capacity 3000-cfm fan provides unrestricted air flow for better heating
  • Precision engineered and manufactured cabinet design eliminates unwanted air gaps
  • Epoxy coated grill
  • High Strength ABS Base Designed for Acoustic Sound Absorption
  • Large custom fabricated air coils
  • Scroll Compressor - quiet and efficient compared to piston type compressors
  • Compressor sound cover
  • Slow Rotation 825RPM Fan Motor
  • Four Blade Custom Engineered Fan Blade for quiet operation
  • Rifled Spiral Titanium Tube
  • Internal Bypass Valving - Flow Rates up to 60 GPM
  • 2 Inch PVC plumbing connections
  • Digital Pool/Spa Control Set Points
  • Remote Compatible -easily controlled by most two-wire and three-wire remote systems
  • On Board Diagnostics - Tells the homeowner if there is a problem

    • Branch Availability

    content loaded

    Specifications

    • BrandRheem
    • ApplicationPool
    • Shipping Dimensions42.5 x 42.5 x 38.5 inch
    • BTU Output117000 British thermal unit
    • Cabinet Depth34.5 inch
    • Cabinet Height42.5 inch
    • Cabinet Width34.5 inch
    • Commercial, Residential, or ProfessionalResidential
    • Compressor TypeScroll
    • Control TypeDigital
    • Each Product Weight310 pound
    • Electrical Input5.5 kilowatts
    • Flow Rate Max60 gal/min
    • Flow Rate Min15 gal/min
    • Frequency Rating (Hz)60
    • Heat Exchanger MaterialTitanium
    • Housing MaterialStainless Steel
    • Master Carton Quantity1
    • Min Circuit Ampacity42 amperage
    • Pallet Quantity1
    • PhaseSingle
    • Refrigerant ModelR-410A
    • Voltage208V, 230V
    • UPC Code840891033929

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    10-H
    10-H
    H000247
    PVC Union
    Product #:
    Mfg #: H000247
    1-C
    1-C
    H000076
    RAY-151-8814
    8 Ton R5350 TX Valve
    Product #: RAY-151-8814
    Mfg #: H000076
    Notes:
    Model: M6350
    01-C
    01-C
    H000076
    RAY-151-8814
    8 Ton R5350 TX Valve
    Product #: RAY-151-8814
    Mfg #: H000076
    01-C
    01-C
    H000173
    RAY-151-8813
    8 Ton P5350 TX Valve
    Product #: RAY-151-8813
    Mfg #: H000173
    1-C
    1-C
    H000173
    RAY-151-8813
    8 Ton P5350 TX Valve
    Product #: RAY-151-8813
    Mfg #: H000173
    Notes:
    Model: M6350
    01-F
    01-F
    H000084
    RAY-151-8284
    H000084 1065RPM FAN MOTOR
    Product #: RAY-151-8284
    Mfg #: H000084
    01-F
    01-F
    H000296
    RAY-151-8289
    850 RPM Fan Motor
    Product #: RAY-151-8289
    Mfg #: H000296
    2-C
    2-C
    H000095
    RAY-151-8211
    Green Rheem Digital Cover Assembly
    Product #: RAY-151-8211
    Mfg #: H000095
    01-F
    01-F
    H000298
    Fan Motor (825 RPM) w/Heat Sink (Heat/Cool)
    Product #:
    Mfg #: H000298
    01-H
    01-H
    H000018
    RAY-151-8094
    H000018 40 SINGLEROW R410A EVAPORATOR COIL
    Product #: RAY-151-8094
    Mfg #: H000018
    3-C
    3-C
    H000222
    RAY-151-8214
    Warm Dark Gray Digital Cover Assembly
    Product #: RAY-151-8214
    Mfg #: H000222
    01-M
    01-M
    750251
    RAY-151-8618
    750251 RHEEM GREEN TOUCH-UP PAINT
    Product #: RAY-151-8618
    Mfg #: 750251
    01-M
    01-M
    750256
    RAY-151-8616
    750256 COOL DARK GRY TOUCH-UP PAINT
    Product #: RAY-151-8616
    Mfg #: 750256
    4-C
    4-C
    H000224
    RAY-151-8213
    5350-8350 Stainless Steel Digital Cover Assembly
    Product #: RAY-151-8213
    Mfg #: H000224
    01-M
    01-M
    750258
    RAY-151-8620
    750258 WARM DARK GRY TOUCH-UP PAINT
    Product #: RAY-151-8620
    Mfg #: 750258
