- This product is obsolete.
- The superceded product was not found.

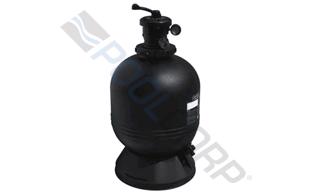

Waterway Carefree FS01619 Oval High-Rate Sand Filter; 16" 1.4 SqFt, 35 gpm
Description
Carefree Top-Mount Sand Filters are designed for extra sand holding capacity. Made of corrosionproof polymeric thermoplastic. The Carefree Sand Filter offers the ideal combination of energy efficiency and excellent water clarity. This filter is an excellent choice for above ground or in-ground pools.
Branch Availability
content loaded
Specifications
- BrandWaterway
- ApplicationPool
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight34 pound
- Filter Control Valve7-Function Top-Mount 1-1/2 Inch FPT Multi-Port Valve with Lever-Action Handle
- Filter Tank Molding TypeOval, Molded Polymeric
- Filtration Area1.4 square feet
- Green or Energy Efficient ProductTrue
- IncludesMounting Base
- Master Carton Quantity1
- Maximum Flow Rate35 gal/min
- Minimum Sell Quantity1
- Mounting BaseMolded Thermoplastic
- Pallet Quantity1
- Standards ApprovalsNSF Certified, CSA Certified
- UPC Code806105240071
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
505-0271B
16 Oval Sand Filter Body with Threaded Sleeve Assembly
Product #:
Mfg #: 505-0271B
1
1
505-0281B
19 Oval Sand Filter Body with Threaded Sleeve Assembly
Product #:
Mfg #: 505-0281B
1
1
505-0291B
22 Oval Sand Filter Body with Threaded Sleeve Assembly
Product #:
Mfg #: 505-0291B
1
1
505-0301B
26 Oval Sand Filter Body with Threaded Sleeve Assembly
Product #:
Mfg #: 505-0301B
2
2
672-7211B
Modular Filter Base
Product #:
Mfg #: 672-7211B
3
3
WVS003B
1 1/2 Multi-Port Valve Assembly - Split-Nut
Product #:
Mfg #: WVS003B
4
4
830-3000B
Pressure Gauge
Product #:
Mfg #: 830-3000B
5
5
805-0435B
O-Ring - Multi-Port Valve
Product #:
Mfg #: 805-0435B
6
6
505-3000B
Threaded Sleeve Assembly
Product #:
Mfg #: 505-3000B
6a
6a
505-3010B
Split-Nut Assembly - Multi-Port Valve
Product #:
Mfg #: 505-3010B
6b
6b
505-3020B
Split-Nut Assembly - Multi-Port Valve with Thread Sleeve and O-Ring
Product #:
Mfg #: 505-3020B
7
7
502-2011B
Sand Fill Guide
Product #:
Mfg #: 502-2011B
8
8
505-2140B
Lateral and Manifold Assembly - 16 Filter
Product #:
Mfg #: 505-2140B
8
8
505-2150B
Lateral and Manifold Assembly - 19 Filter
Product #:
Mfg #: 505-2150B
8
8
505-2160B
Lateral and Manifold Assembly - 22 Filter
Product #:
Mfg #: 505-2160B
Wholegoods
There are no wholegoods available.
