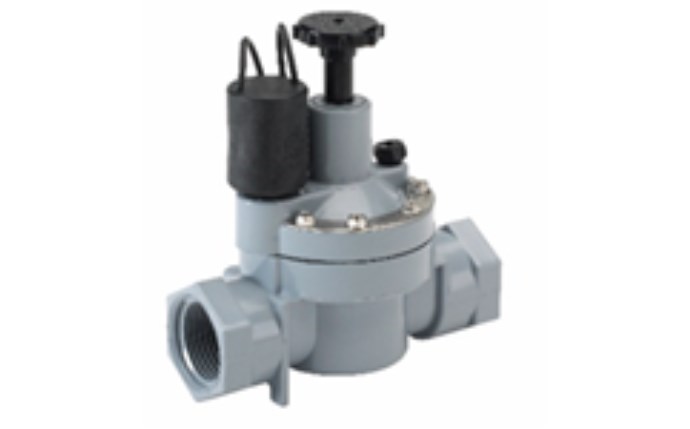

Irritrol 205S 1" NPT 205 Series Valve without Flow Control
Description
Irritrol 205S 1" NPT 205 Series Valve without Flow Control is the irrigation industry’s time-tested leader for dependable operation in potable and dirty water applications. With a proven track record of success in a wide range of environments, these debris-tolerant valves are available with flow control as an optional feature. Constructed of heavy-duty, corrosion- and UV-resistant PVC, the 205 Series features a high-flow, low-friction-loss-design that has a pressure range of 10-150 psi and flow range of .25-30 GPM. A manual bleed and a rugged, nylon-reinforced Buna-N diaphragm add to this valve’s wide popularity.
Documents
No documents available
Branch Availability
content loaded
Specifications
- BrandIrritrol
- ApplicationIrrigation
- Shipping Dimensions0.8 x 11 x 11 inch
- ChannelConstruction Channel
- ColorGray
- Each Product Weight0.9 pound
- Master Carton Quantity20
- Minimum Sell Quantity1
- Pallet Quantity800
- Flow Control IncludedFalse
- Valve ColorGray
- Valve Connection ConfigurationNPT
- Valve Flow Max30 gal/min
- Valve Flow Min0.25 gal/min
- Valve MaterialPVC or Polyvinyl Chloride
- UPC Code090258041153
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

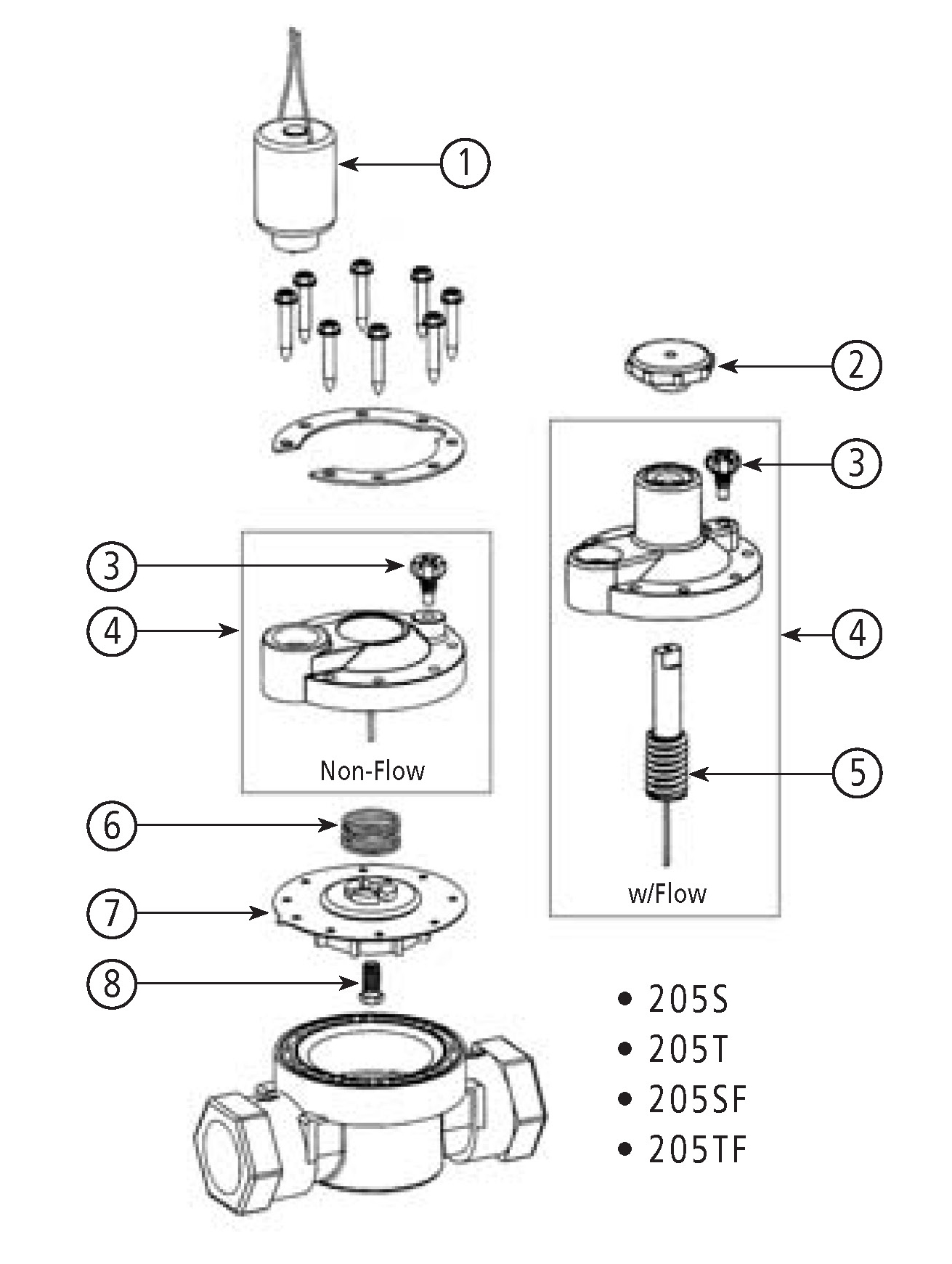

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
R811-24VACG
IRR-581-1079
Product #: IRR-581-1079
Mfg #: R811-24VACG
1
1
588403
Solenoid Assembly, 24 VAC, 50 Hz
Product #:
Mfg #: 588403
2
3
4
5
5
100230
Flow Shaft Assembly 205SF/205TF
Product #:
Mfg #: 100230
6
6
100231-H
Spring
Product #:
Mfg #: 100231-H
7
8
8
R544101
Diaphragm Screw
Product #:
Mfg #: R544101
9
9
R205KIT
Cover/Diaphragm Assembly Kit 205S/205T (includes screws and spring)
Product #:
Mfg #: R205KIT
9
