Hi-E2 Swimming Pool Heater Liquid Propane Copper Tubing 350K BTU

Product #:LAR-15-369

Mfg. Part #:EHE350PC

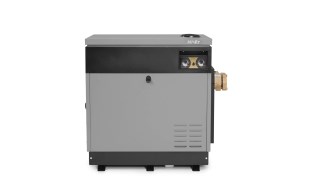

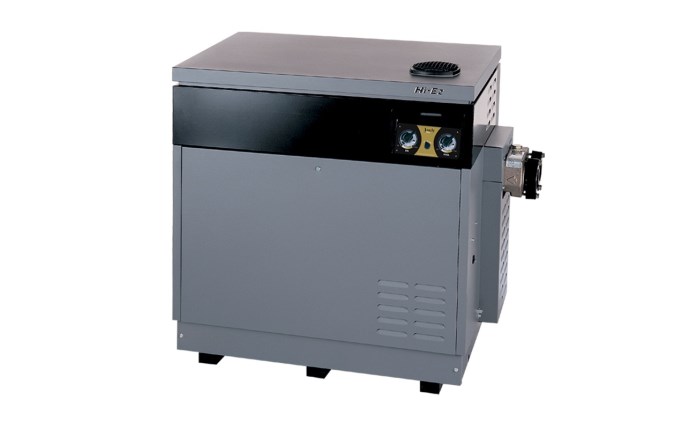

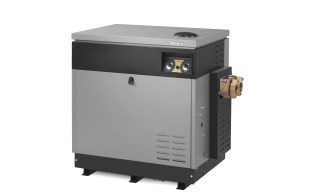

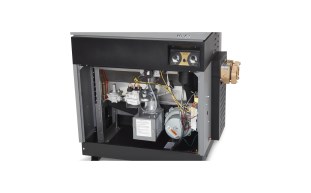

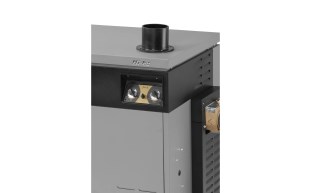

Jandy Pro Series EHE350PC Swimming Pool Heater Liquid Propane Copper Tubing 350K BTU

Jandy

Hi-E2 Swimming Pool Heater Liquid Propane Copper Tubing 350K BTU

Product #:LAR-15-369

Mfg. Part #:EHE350PC

Description

Jandy Pro Series EHE350PC Swimming Pool Heater Liquid Propane Copper Tubing 350K BTU is an energy-efficient and environmentally responsible low NOx performance solution for pools and spas.

Documents

Feature Bullets

  • Unique forced-air system makes this the ideal heater for use in extreme weather

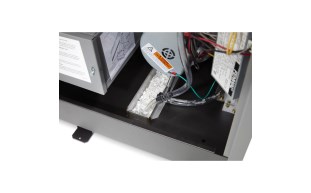

  • The Hi-E2 employs our hot surface ignition system, completely eliminating the pilot light
  • High-tech composite, corrosion resistant materials and quality construction
  • Self-cleaning ignition, automatic venting, and a high velocity heat exchanger
  • Ideal for both residential and commercial applications
  • Hot surface ignition provides quick start-up
  • Compact design fits almost anywhere
  • Sealed combustion, bronze headers, PVC venting

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • ApplicationIndoor, Outdoor, Pool, Spa
    • Shipping Dimensions48 x 33 x 49 inch
    • BTU Input350000 British thermal unit
    • BTU Output350000 British thermal unit
    • Cabinet Depth23.5 inch
    • Cabinet Height34.0625 inch
    • Cabinet Width31.875 inch
    • Commercial, Residential, or ProfessionalCommercial

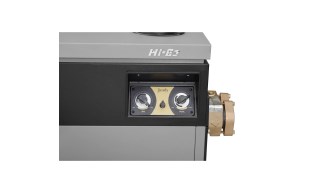

    • Control TypeDual Thermostat
    • Each Product Weight345 pound
    • Flow Rate Min30 gal/min
    • Frequency Rating (Hz)60
    • Fuel TypePropane
    • Green or Energy Efficient ProductTrue
    • Header MaterialBronze
    • High Altitude ModelTrue
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • PhaseSingle
    • Standards ApprovalsASME Certified

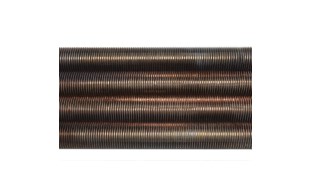

    • Tubing MaterialCopper
    • Voltage115V
    • UPC Code052337004770

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

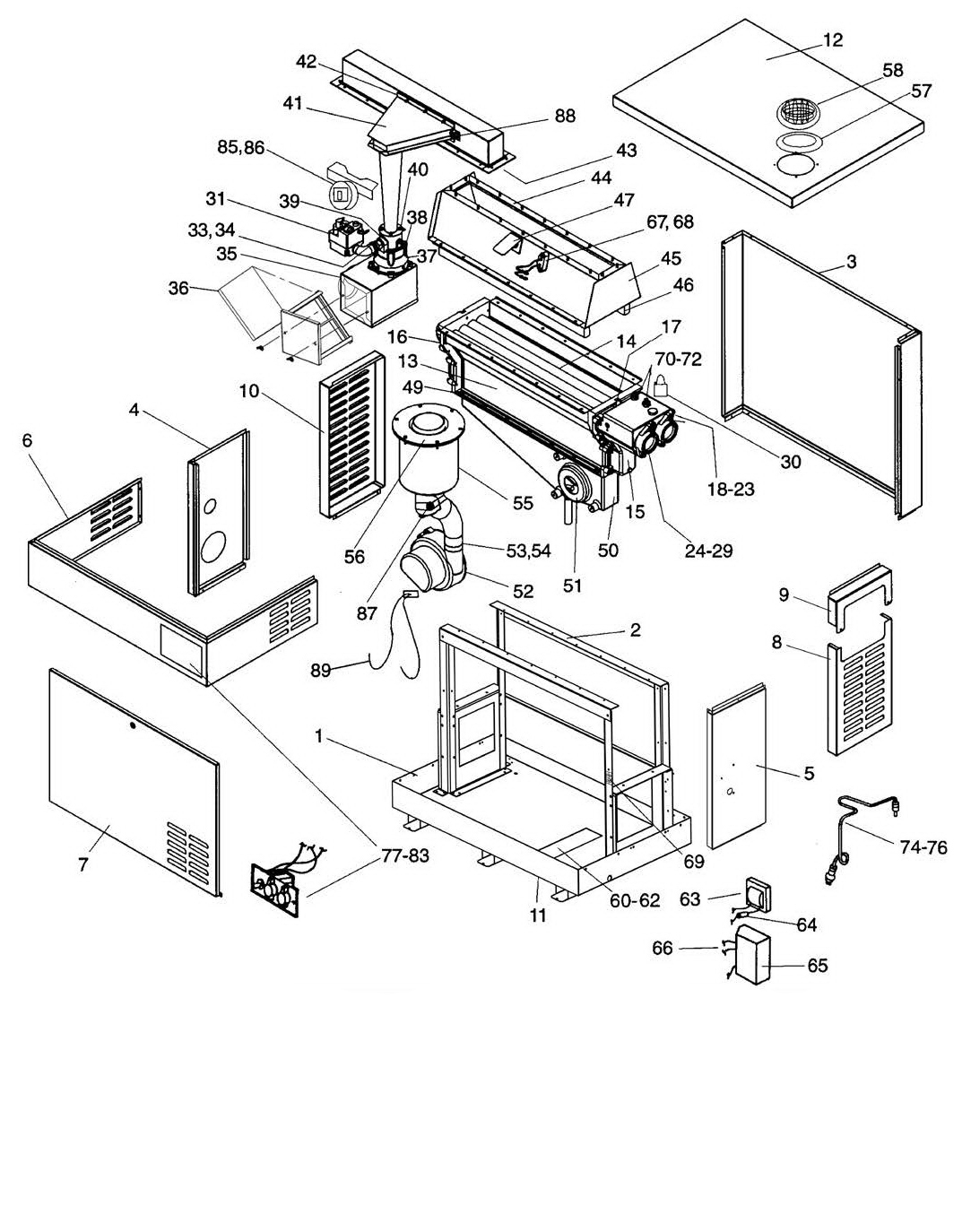

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    2
    2
    R0301505
    LAR-151-2287
    Frame Support Assembly for Hi-E2® Pool/Spa 350 Heater
    Product #: LAR-151-2287
    Mfg #: R0301505
    3
    3
    R0347205
    LAR-151-1818
    Hi-E2 Rear Panel for Pro Series Hi-E2® 350 Pool/Spa Heater
    Product #: LAR-151-1818
    Mfg #: R0347205
    4
    4
    R0347300
    LAR-151-1814
    Hi-E2 Pewter Left Panel, Pewter for Model 350
    Product #: LAR-151-1814
    Mfg #: R0347300
    5
    5
    R0347400
    Right Side Panel
    Product #:
    Mfg #: R0347400
    6
    6
    R0347505
    LAR-151-1777

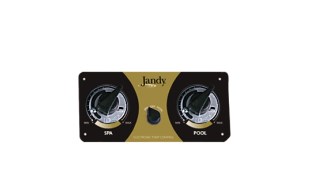

    Temperature Control Panel Assembly for Model 350
    Product #: LAR-151-1777
    Mfg #: R0347505
    9
    9
    R0347800
    LAR-151-1785
    Hi-E2® Pewter Top Right Side Panel, Pewter for 350 Pool/Spa Heater
    Product #: LAR-151-1785
    Mfg #: R0347800
    12
    12
    R0348105
    LAR-151-2447
    Hi-E2® Pewter Top Panel
    Product #: LAR-151-2447
    Mfg #: R0348105
    N/S
    N/S
    R03021Z00
    LAR-151-2271
    Jacket Hardware Kit for Hi-E2 220/350 Heater
    Product #: LAR-151-2271
    Mfg #: R03021Z00
    Notes:
    Not Shown
    N/S
    N/S
    R0302500
    LAR-151-2261
    Internal Hardware Kit for Hi-E2® Pool/Spa Heater
    Product #: LAR-151-2261
    Mfg #: R0302500
    Notes:
    Not Shown
    13
    13
    R0303805
    LAR-151-3805
    Complete Heat Exchanger Assembly for Model 350 Hi-E2® Heater
    Product #: LAR-151-3805
    Mfg #: R0303805
    N/S
    N/S
    R0523705
    LAR-151-2207
    Heat Exchanger Assembly for Hi-E2® Pool/Spa Heater
    Product #: LAR-151-2207
    Mfg #: R0523705
    Notes:
    Not Shown
    15
    15
    R0303900
    LAR-151-4900

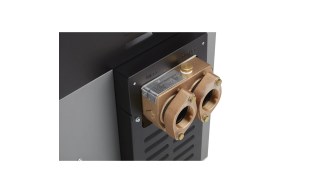

    Inlet/Outlet Header for Hi-E2® Heater
    Product #: LAR-151-4900
    Mfg #: R0303900
    16
    16
    R0304000
    LAR-151-9002
    Return Header for Hi-E2® Heater
    Product #: LAR-151-9002
    Mfg #: R0304000
    17
    17
    R0304300
    LAR-151-4300
    Header Gasket for Hi-E2® Heater
    Product #: LAR-151-4300
    Mfg #: R0304300
    18
    18
    R0304400
    LAR-151-9003
    Bypass Valve Assembly for Hi-E2® Heater
    Product #: LAR-151-9003
    Mfg #: R0304400
