- This product is obsolete.
- The superceded product was not found.

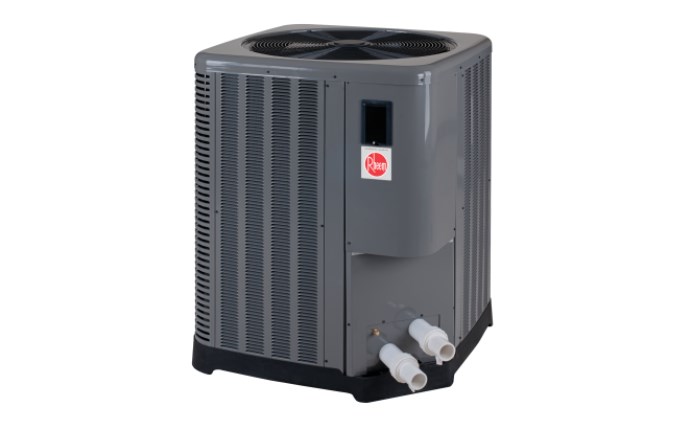

Raypak Inc, 016024 D6450ti-E-HC, RUUD, Classic Series Heat Pump 119K BTU 208/230V
Description
RUUD Digital Heat Pump 117K BTU 208/230V comes with DuraSteel™ Powder-Coated Cabinet suitable for any weather condition or season. The fully louvered steel jacket protects the evaporation coil from harsh conditions. This heat pump also features a 3 Blade Swept Wing Fan that provides great efficiency while remaining whisper quiet. The rustproof and sound deading base material keeps your heat pump up and running while holding sound levels to a minimum. Best of all the classic digital heat pump feature digital controls which allows you to allows you to dial in your desired temperature without having to adjust it again.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRUUD
- ApplicationPool
- Shipping Dimensions43 x 38.5 x 51 inch
- BTU Output119000 British thermal unit
- Commercial, Residential, or ProfessionalResidential
- Compressor TypeScroll
- Control TypeDigital
- Each Product Weight319 pound
- Electrical Input5.9 kilowatts
- Heat Exchanger MaterialTitanium
- Master Carton Quantity1
- Min Circuit Ampacity33.7 amperage
- Minimum Sell Quantity1
- Pallet Quantity1
- Voltage208V, 230V
- UPC Code662021457401
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

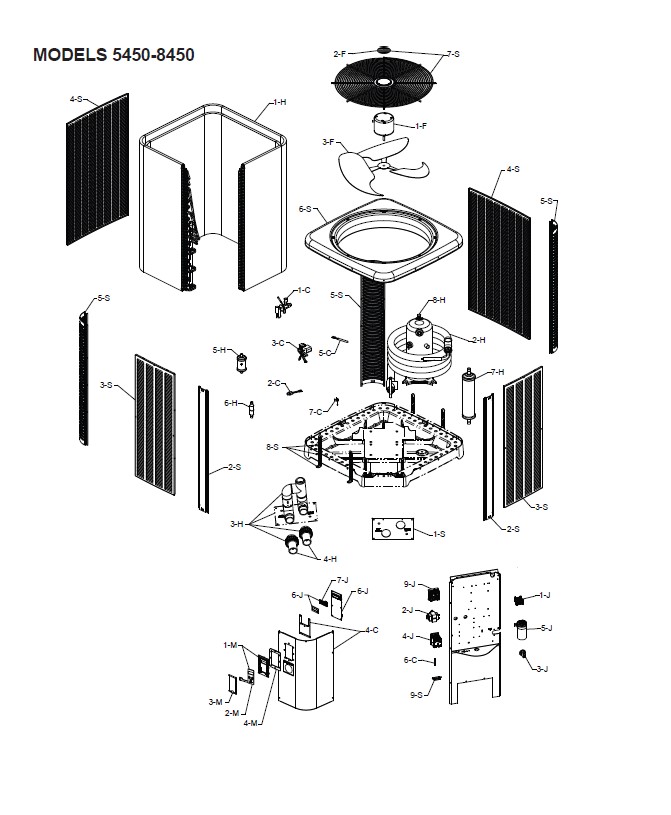

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-C
2-C
2-C
H000078
RAY-151-8161
Product #: RAY-151-8161
Mfg #: H000078
3-C
3-C
H000079
RAY-151-8156
Product #: RAY-151-8156
Mfg #: H000079
4-C
4-C
H000349
Control Cover
Product #:
Mfg #: H000349
5-C
5-C
H000329
Temperature Sensor 100K
Product #:
Mfg #: H000329
6-C
6-C
H000332
Ambient Temperature Sensor
Product #:
Mfg #: H000332
7-C
7-C
H000333
Coil Sensor
Product #:
Mfg #: H000333
1-H
1-H
N/A
Evaporator Coil
Product #:
Mfg #: N/A
2-H
2-H
H000368
Heat Exchanger
Product #:
Mfg #: H000368
3-H
3-H
H000365
Bypass Assembly (Includes 1-S)
Product #:
Mfg #: H000365
4-H
4-H
H000317
RAY-151-6489
Product #: RAY-151-6489
Mfg #: H000317
5-H
5-H
H000011
RAY-151-8268
Product #: RAY-151-8268
Mfg #: H000011
6-H
6-H
H000006
RAY-151-8078
Product #: RAY-151-8078
Mfg #: H000006
7-H
7-H
N/A
Charge Compensator
Product #:
Mfg #: N/A
8-H
8-H
H000348
Compressor 1 PH
Product #:
Mfg #: H000348
Wholegoods
There are no wholegoods available.
