Classic Series Pool Digital Heat Pump 133K BTU 208/230V

Product #:RHM-15-3345

Mfg. Part #:013413

  • This product is obsolete.
  • The superceded product was not found.

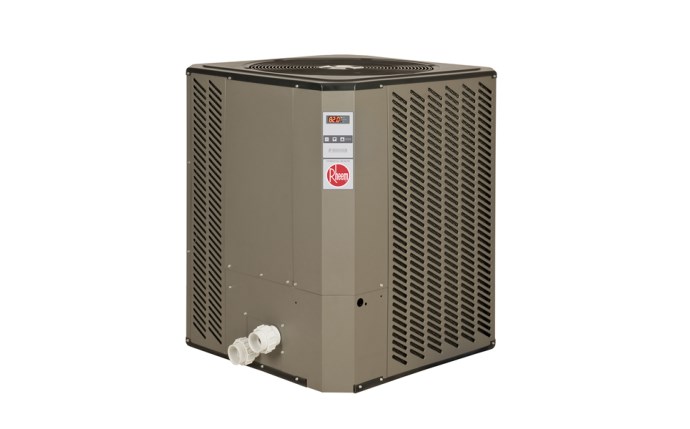

Rheem M8353 Classic Series Pool Heat Pump; 133K BTU, Digital Control, Titanium Tubing, 208/230 V, 3-Phase

Rheem

Classic Series Pool Digital Heat Pump 133K BTU 208/230V

Product #:RHM-15-3345

Mfg. Part #:013413

Description

The Rheem Classic Series heat pump pool heater is the first choice of builders and service companies for in-ground pools of all sizes. With its all metal cabinet construction and industry-leading component parts, the Rheem heat pump really has no equal in

Documents

Feature Bullets

  • Polyester powder-coated, non-corrosive cabinet is more durable than plastic heat pump cabinets.
  • Same rugged steel construction used by all the major air conditioner manufacturers
  • Large Air Coils - Raised lanced-fin design maximizes heating at lower temperatures
  • Venturi Fan Cowling - High-capacity 3000-cfm fan provides unrestricted air flow for better heating
  • Precision engineered and manufactured cabinet design eliminates unwanted air gaps
  • Scroll Compressor - Scroll compressors are quiet and efficient compared to piston type compressors
  • Sound Isolation Pads - Prevents sound transfer and elevates the base pan to improve water drainage.
  • Spiral Titanium Tube - Our spiral titanium tube heat exchanger provides a corrosion-free waterway
  • Internal Bypass Valving - Automatically compensates for normal day-to-day changes
  • Plumbing Connections - Offset 2 Inch PVC union connections are included for ease of installation
  • Digital Pool/Spa Control
  • Remote Compatible - The digital heat pump pool heater can be easily controlled
  • On Board Diagnostics
  • Labor Warranty - 2 Years if installed in a single family residential dwelling
  • Parts Warranty - 7 Years if installed in a single family residential dwelling
  • Titanium tube - 10 Years if installed in a single family residential dwelling

    • Branch Availability

    content loaded

    Specifications

    • BrandRheem
    • ApplicationPool
    • Shipping Dimensions40 x 36 x 36 inch
    • BTU Output133000 British thermal unit
    • Cabinet Depth34.5 inch
    • Cabinet Height42.5 inch
    • Cabinet Width34.5 inch
    • ChannelNone
    • Commercial, Residential, or ProfessionalResidential
    • Compressor TypeScroll
    • Control TypeDigital
    • Each Product Weight387 pound
    • Electrical Input7 kilowatts
    • Flow Rate Max60 gal/min
    • Flow Rate Min15 gal/min
    • Frequency Rating (Hz)60
    • Heat Exchanger MaterialTitanium
    • Housing MaterialStainless Steel
    • Master Carton Quantity1
    • Min Circuit Ampacity42 amperage
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • PhaseThree
    • Refrigerant ModelR-410A
    • Standards ApprovalsAHRI Certified
    • Voltage208V, 230V
    • UPC Code840891028192

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

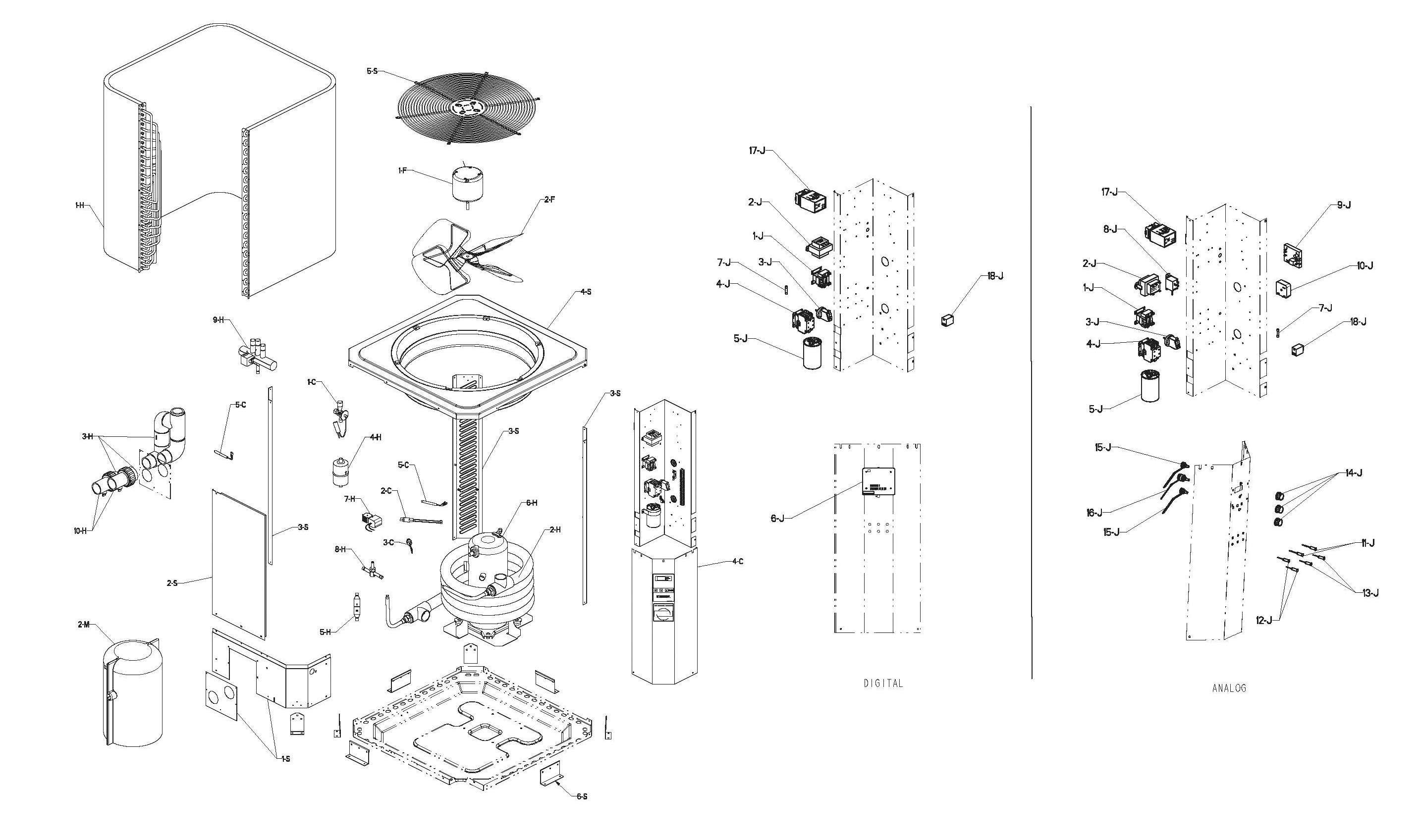

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1-C
    1-C
    H000077
    RAY-151-8810
    12 Ton TX Valve
    Product #: RAY-151-8810
    Mfg #: H000077
    1-C
    1-C
    H000173
    RAY-151-8813
    8 Ton P5350 TX Valve
    Product #: RAY-151-8813
    Mfg #: H000173
    2-C
    2-C
    H000078
    RAY-151-8161
    Low Pressure Switch For 5350/6350/8350/2350/3350/4350 Heat Pump Pool Heater
    Product #: RAY-151-8161
    Mfg #: H000078
    3-C
    3-C
    H000079
    RAY-151-8156
    High Pressure Switch For 9350/9353/10353/10354/10355 Heat Pump Pool Heater
    Product #: RAY-151-8156
    Mfg #: H000079
    4-C
    4-C
    H000095
    RAY-151-8211
    Green Rheem Digital Cover Assembly
    Product #: RAY-151-8211
    Mfg #: H000095
    4-C
    4-C
    H000222
    RAY-151-8214
    Warm Dark Gray Digital Cover Assembly
    Product #: RAY-151-8214
    Mfg #: H000222
    4-C
    4-C
    H000224
    RAY-151-8213
    5350-8350 Stainless Steel Digital Cover Assembly
    Product #: RAY-151-8213
    Mfg #: H000224
    4-C
    4-C
    H000096
    RAY-151-8203
    Green Rheem Analog Cover Assembly
    Product #: RAY-151-8203
    Mfg #: H000096
    4-C
    4-C
    H000225
    RAY-151-8205
    Warm Dark Gray Analog Cover Assembly
    Product #: RAY-151-8205
    Mfg #: H000225
    5-C
    5-C
    H000002
    RAY-151-3630
    Temperature Sensor For Model R5350, R6350, R8350 Pool Heater, 10 kohm
    Product #: RAY-151-3630
    Mfg #: H000002
    1-H
    1-H
    H000020
    RAY-151-8092
    H000020 40 DOUBLEROW R410A EVAPORATOR COIL
    Product #: RAY-151-8092
    Mfg #: H000020
    2-H
    2-H
    H000024
    RAY-151-8367
    Heat Exchanger For 8350 Heat Pump Pool Heater
    Product #: RAY-151-8367
    Mfg #: H000024
    3-H
    3-H
    H000042
    RAY-151-8056
    Bypass Assembly For 5350/6350/8350 Heat Pump Pool Heater
    Product #: RAY-151-8056
    Mfg #: H000042
    10-H
    10-H
    H000317
    RAY-151-6489
    2 x 1/4 PVC Union Connector Kit With Built-In Drain
    Product #: RAY-151-6489
    Mfg #: H000317
    4-H
    4-H
    H000011
    RAY-151-8268
    Liquid Line Drier For 5200/6200/8200/6300 Heat Pump Pool Heater
    Product #: RAY-151-8268
    Mfg #: H000011

    Wholegoods

    There are no wholegoods available.
