#59 Liquid Propane Digital Heater 360K BTU

Product #:RUD-15-5013

Mfg. Part #:015013

  • This product is obsolete.
  • The superceded product was not found.

Ruud P-D406A Digital Polymer Pool/Spa Heater; 360K BTU, Liquid Propane, #59 Burner, Cupro-Nickel Tubing

RUUD

#59 Liquid Propane Digital Heater 360K BTU

Product #:RUD-15-5013

Mfg. Part #:015013

Description

The Ruud liquid propane heater is designed for the highest level of performance, and made quality-made parts at every level. The heater features protective measures against all types of damaging factors including weather, environmental factors and temperature. The stainless steel and aluminum protect heat-sensitive areas, while cutting edge technology ensures that water is heated to your specific preferences.

Documents

Feature Bullets

  • PolyTuf Textured Powder Coating - The Ruud gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solvent-borne and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond
  • Polymer Headers - Prevent rust stains from harming your pool’s surface, giving you years of trouble-free swimming pleasure
  • Cupro-Nickel Finned-Tube Heat Exchanger - Single bank, straight through design delivers lowest pressure drop. Integral fins have ten times the heat transfer surface of plain tubes. Cupro-nickel tubes provide superior chemical resistance over copper for tough commercial installations
  • Stainless Steel Tube Sheet - Stainless steel tube sheets are used on all Ruud gas heaters. This allows for a completely nonferrous waterway, leaving your pool truly rust-free
  • CPVC 2 Inch Water Connections - Standard with every Ruud is a set of 2 Inch slip-fit CPVC water connections to make your installation secure and effortless
  • Condensation Protection - The Unitherm Governor helps reduce condensation from low inlet water temperatures. It automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105 deg F
  • High Flow Rates - The Ruud gas heater comes with an automatic bypass built into the header. You'll find that the heater is capable of handling water flow at a rate up to 125 gpm
  • Fuel-Efficient - Energy-smart Ruud heaters consistently achieve the highest efficiency ratings. They meet or exceed all federal and state standards

    • Branch Availability

    content loaded

    Specifications

    • BrandRUUD
    • ApplicationPool, Spa
    • Shipping Dimensions28 x 29 x 38 inch
    • BTU Input399000 British thermal unit
    • Burner Orifice Size#59
    • Cabinet Depth28 inch
    • Cabinet Height38 inch
    • Cabinet Width29 inch
    • ChannelPool Equipment
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Control TypeDigital Electronic
    • Each Product Weight249 pound
    • Elevation Max5000 foot
    • Elevation Min3000 foot
    • Flow Rate Max125 gal/min
    • Flow Rate Min125 gal/min
    • Flue Diameter9 inch
    • Frequency Rating (Hz)60
    • Fuel TypePropane
    • Gas Connection0.75 inch
    • Gas Connection FITNPT
    • Green or Energy Efficient ProductTrue
    • Header MaterialPolymer
    • Indoor Drafthood64.5 inch
    • Master Carton Quantity1
    • Minimum J12.3125 inch
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • PhaseSingle
    • Stackless Outdoor Top40 inch
    • Standards ApprovalsASME Certified
    • Tubing MaterialCupro Nickel
    • Voltage115V, 230V
    • UPC Code840891033127

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

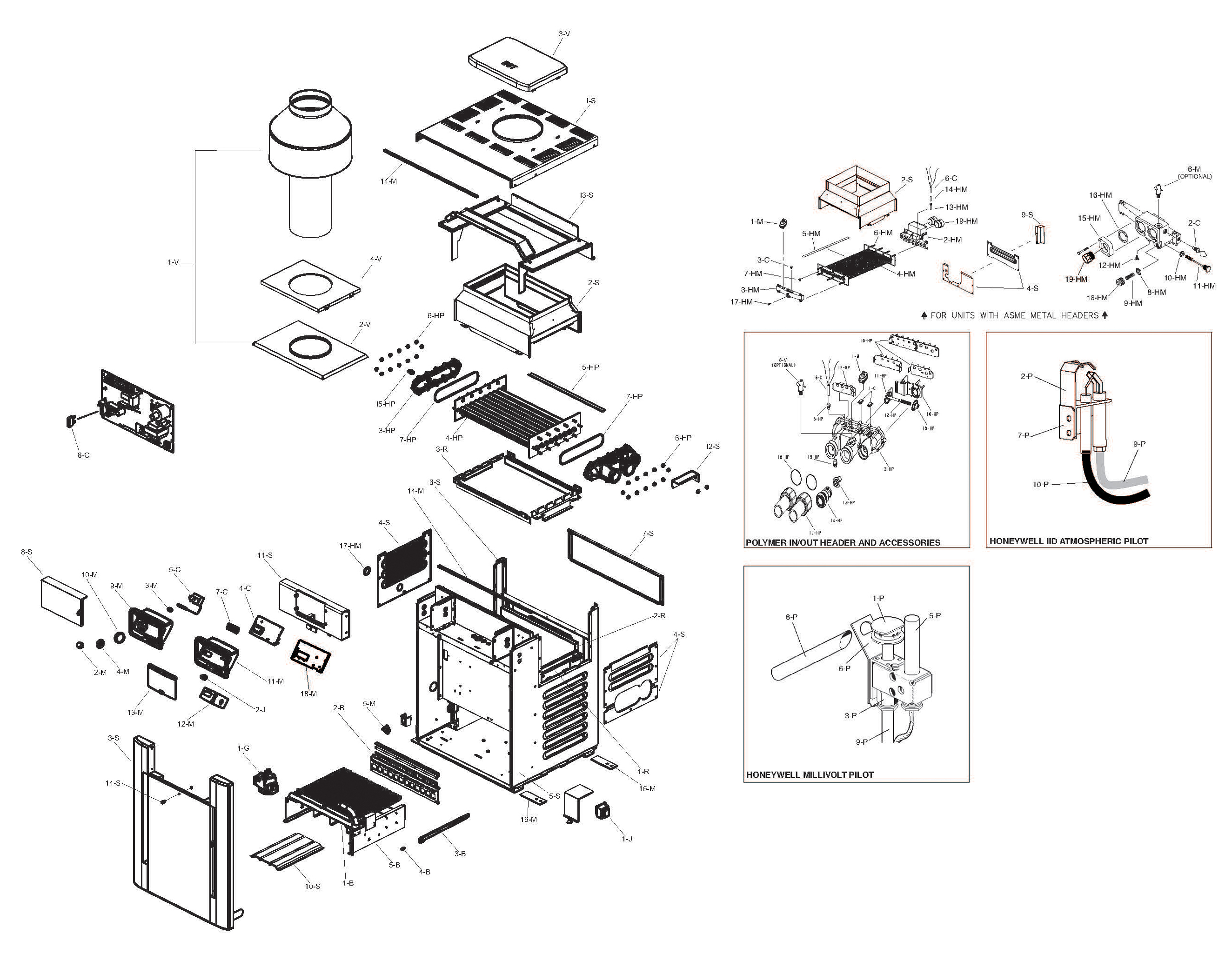

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1-B
    1-B
    010394F
    RAY-151-1563
    Burner Tray With Burners for Model 406A Pool Heater
    Product #: RAY-151-1563
    Mfg #: 010394F
    1-B
    1-B
    010398F
    RAY-151-8788
    Burner Tray without Burner For 406A Pool & Spa Heater
    Product #: RAY-151-8788
    Mfg #: 010398F
    1-B
    1-B
    010402F
    RAY-151-8790
    406A STG Burner Tray with Natural Gas Valve
    Product #: RAY-151-8790
    Mfg #: 010402F
    1-B
    1-B
    010410F
    RAY-151-8789
    406A IID Burner Tray with Natural Gas Valve
    Product #: RAY-151-8789
    Mfg #: 010410F
    1-B
    1-B
    010414F
    RAY-151-8791
    406A IID Burner Tray with Liquid Propane Valve
    Product #: RAY-151-8791
    Mfg #: 010414F
    1-B
    1-B
    010406F
    RAY-151-8792
    406A STG Burner Tray with Liquid Propane Valve
    Product #: RAY-151-8792
    Mfg #: 010406F
    2-B
    2-B
    010418F
    RAY-151-1879
    Burner Spacer Hold Down Kit For Model 406A Pool Heater
    Product #: RAY-151-1879
    Mfg #: 010418F
    3-B
    3-B
    100-10000414
    RAY-151-1123
    SRV Replacement Burner Kit
    Product #: RAY-151-1123
    Mfg #: 100-10000414
    4-B
    4-B
    350079F
    RAY-151-1213
    Natural Gas Burner Orifice For Model 185B (12), 265B (17) Pool Heater, #50
    Product #: RAY-151-1213
    Mfg #: 350079F
    4-B
    4-B
    350080F
    RAY-151-0080
    350080F #51 NG BURNER ORIFICE
    Product #: RAY-151-0080
    Mfg #: 350080F
    4-B
    4-B
    350081F
    RAY-151-0081
    Natural Gas Burner Orifice For Model 206A (13), 266A (18) Pool Heater, #52
    Product #: RAY-151-0081
    Mfg #: 350081F
    4-B
    4-B
    350347F
    RAY-151-8598
    Natural Gas Pilot Burner Orifice For 206A/266A/336A/406A Pool & Spa Heater #53
    Product #: RAY-151-8598
    Mfg #: 350347F
    4-B
    4-B
    350083F
    RAY-151-1215
    Natural Gas Burner Orifice, #57
    Product #: RAY-151-1215
    Mfg #: 350083F
    4-B
    4-B
    350087F
    Propane Gas Burner Orifice #58
    Product #:
    Mfg #: 350087F
    4-B
    4-B
    350350F
    RAY-151-1365
    Propane Gas Burner Orifice
    Product #: RAY-151-1365
    Mfg #: 350350F
