- This product is obsolete.
- The superceded product was not found.

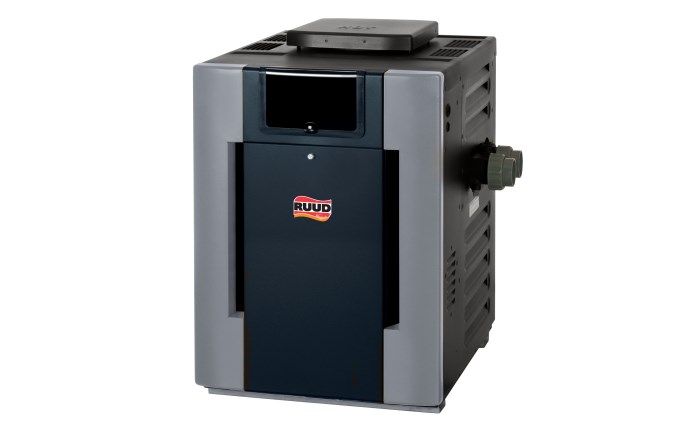

Ruud P-D407A Digital Polymer Low NOx Pool/Spa Heater; 399K BTU, Natural Gas, #26 Burner, Copper Tubing
Description
The Ruud P-D337A Natural Gas Low NOx Digital Heater meets or exceeds all federal and state standards with Ruud's energy-smart heaters consistently achieve the highest efficiency ratings. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts,
updrafts, sleet, snow, etc.
updrafts, sleet, snow, etc.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandRUUD
- ApplicationPool, Spa
- Shipping Dimensions38 x 34 x 30 inch
- BTU Input399000 British thermal unit
- Burner Orifice Size#26
- Cabinet Depth28 inch
- Cabinet Height31.8125 inch
- Cabinet Width29 inch
- ChannelPool Equipment
- Commercial, Residential, or ProfessionalCommercial, Residential
- Control TypeDigital Electronic
- Each Product Weight238 pound
- Elevation Max5000 foot
- Elevation Min0 foot
- Flow Rate Max125 gal/min
- Flow Rate Min125 gal/min
- Flue Diameter9 inch
- Frequency Rating (Hz)60
- Fuel TypeNatural Gas
- Gas Connection0.75 inch
- Gas Connection FITNPT
- Green or Energy Efficient ProductTrue
- Header MaterialPolymer
- High Altitude ModelFalse
- Indoor Drafthood58.5 inch
- Minimum J12.5 inch
- Minimum Sell Quantity1
- PhaseSingle
- Stackless Outdoor Top34 inch
- Standards ApprovalsASME Certified
- Tubing MaterialCopper
- Voltage115V, 230V
- UPC Code840891014867
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

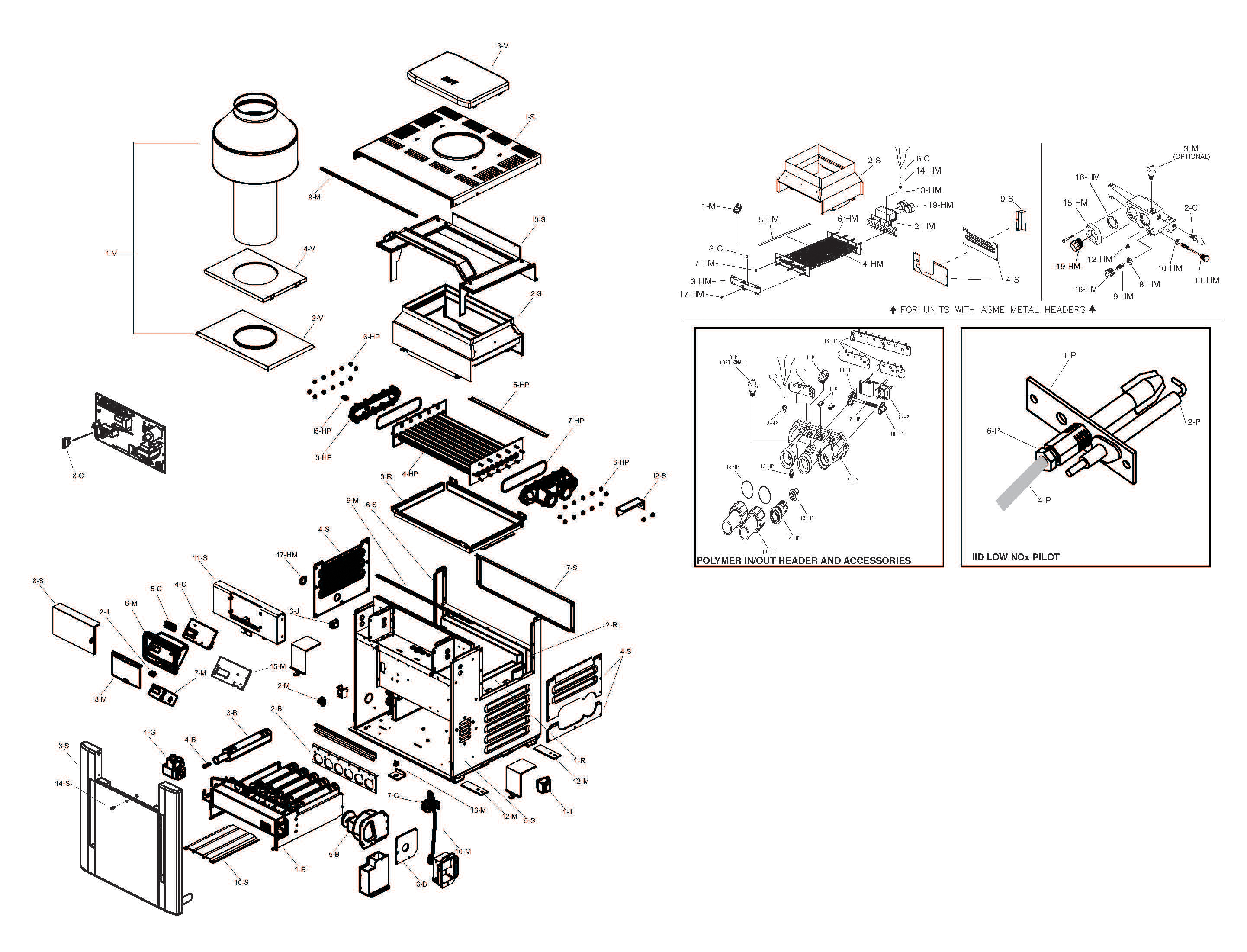

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
010346F
RAY-151-0346
Product #: RAY-151-0346
Mfg #: 010346F
1-B
1-B
010087F
RAY-151-0087
Product #: RAY-151-0087
Mfg #: 010087F
2-B
2-B
010257F
RAY-151-0257
Product #: RAY-151-0257
Mfg #: 010257F
3-B
3-B
310732
RAY-151-3620
310732 207- 407 BURNER
Product #: RAY-151-3620
Mfg #: 310732
4-B
4-B
351632
Burner Orifice Nat. #26 (0-5000)
Product #:
Mfg #: 351632
5-B
5-B
010042F
RAY-151-1251
Product #: RAY-151-1251
Mfg #: 010042F
7-B
6-B
6-B
010341F
RAY-151-8099
Product #: RAY-151-8099
Mfg #: 010341F
1-C
2-C
2-C
600892B
RAY-151-3609
Product #: RAY-151-3609
Mfg #: 600892B
3-C
3-C
600893B
RAY-151-3610
Product #: RAY-151-3610
Mfg #: 600893B
4-C
4-C
013464F
RAY-151-3724
013464F IID PC BOARD CONTROLLER (AFTER 11/2003)
Product #: RAY-151-3724
Mfg #: 013464F
5-C
5-C
013640F
RAY-151-3850
Product #: RAY-151-3850
Mfg #: 013640F
6-C
6-C
009577F
RAY-151-1208
Product #: RAY-151-1208
Mfg #: 009577F
7-C
7-C
010355F
RAY-151-1397
Product #: RAY-151-1397
Mfg #: 010355F
Wholegoods
There are no wholegoods available.
