Waterco

36" SMD900 Micron Sand Filter with 3" Bulkhead Connection 58 PSI

Product #:BAK-05-2024

Mfg. Part #:30509004801NA


Waterco 30509004801NA 36" SMD900 Micron Sand Filter with 3" Bulkhead Connection 58 PSI

Waterco

36" SMD900 Micron Sand Filter with 3" Bulkhead Connection 58 PSI

Product #:BAK-05-2024

Mfg. Part #:30509004801NA

Description

Manufactured from the highest grade of non corrosive materials and employing the latest in fiberglass winding technology, Micron fiberglass filters are designed and built for many years of trouble free operation.

Branch Availability

content loaded

Specifications

  • BrandWaterco
  • ApplicationPool
  • Shipping Dimensions38 x 38 x 41 inch
  • Commercial, Residential, or ProfessionalCommercial
  • Each Product Weight114 pound
  • Filter Media Pea Gravel275 pound
  • Filter Media Sand Required184 gallon
  • Filtration Area7.1 square feet
  • MaterialFiberglass
  • Maximum Working Pressure58 pounds per square inch
  • Minimum Sell Quantity1
  • Sand Required2200 pound

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
W22634S

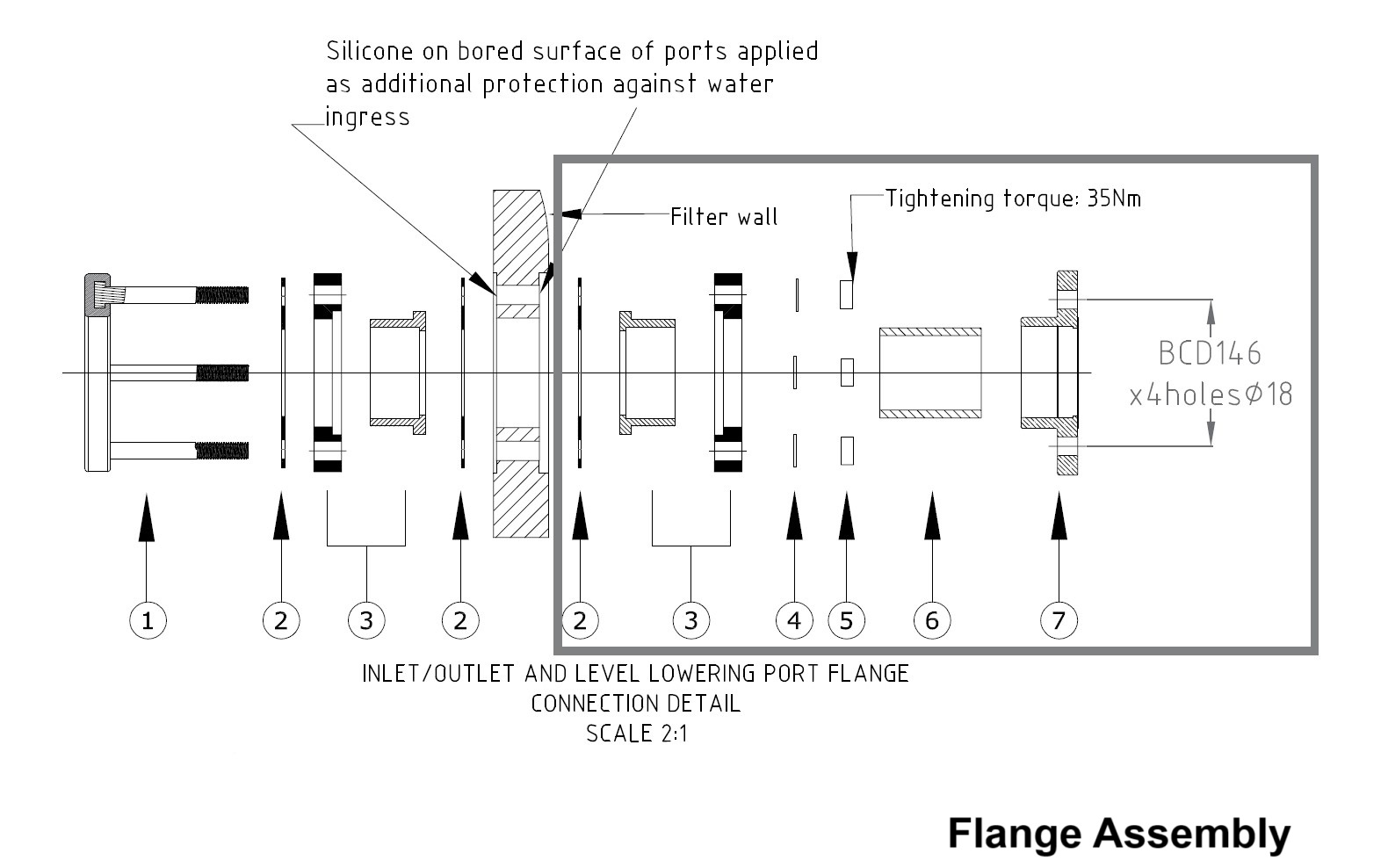

Flange Stud Ring 3" ANSI 150
Product #:
Mfg #: W22634S
Notes:
Flange Assembly
3
3
1216801
PVC Flange ANSI 150 3"
Product #:
Mfg #: 1216801
Notes:
Flange Assembly
4
4
1216803
Washer M16 Full Face SS316
Product #:
Mfg #: 1216803
Notes:
Flange Assembly
5
5
W22622
Hex Nut 5/8" UNC SS316
Product #:
Mfg #: W22622
Notes:
Flange Assembly
7
7
W22408
PVC Flange 3" AS4087/PN16 SCH80
Product #:
Mfg #: W22408
Notes:
Flange Assembly
1
1
W22115

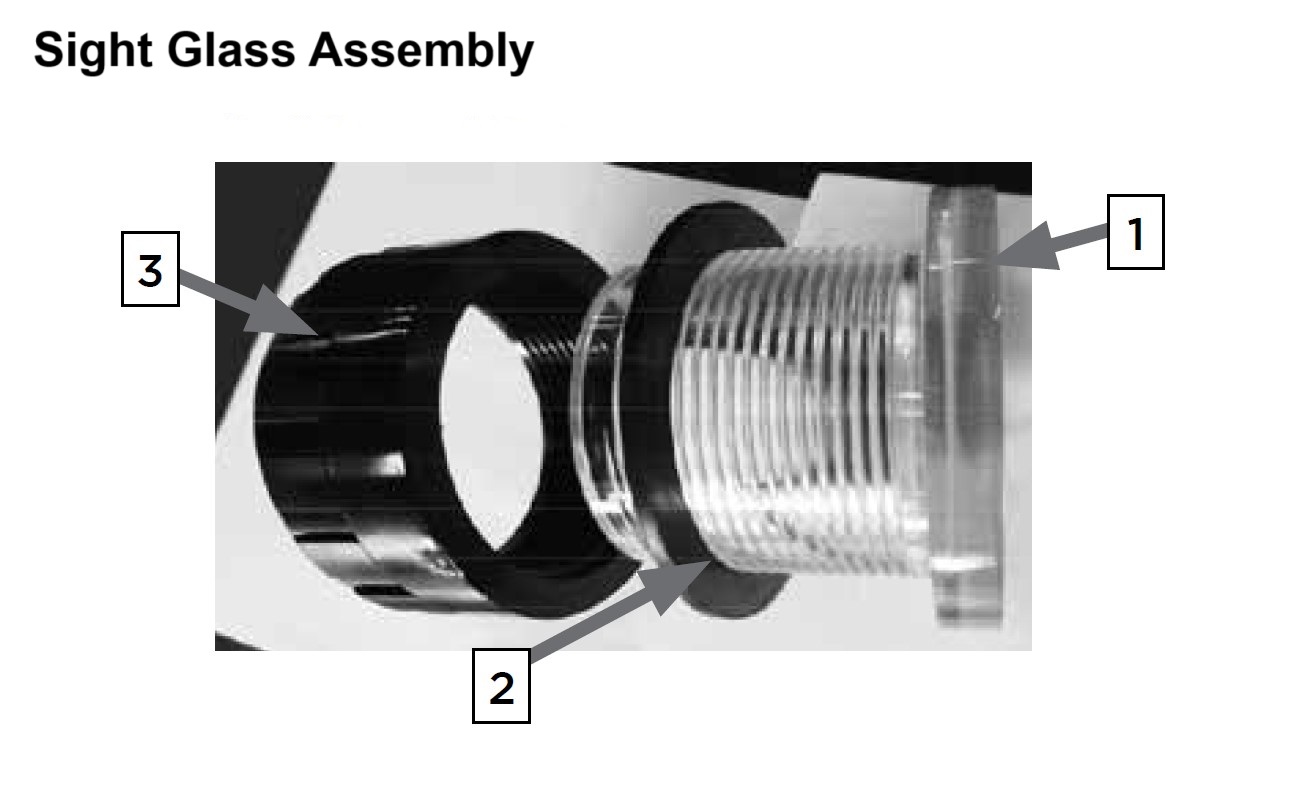

Sight Glass 80MM with Thread
Product #:
Mfg #: W22115
Notes:
Sight Glass Assembly
2
2
W02250
Gasket 80MM Bulkhead Rubber
Product #:
Mfg #: W02250
Notes:
Sight Glass Assembly
3
3
W02254B
Bulkhead Lock Nut 80MM Black
Product #:
Mfg #: W02254B
Notes:
Sight Glass Assembly

Wholegoods

There are no wholegoods available.
