Little Giant
Effluent Pump with Float Switch and 20' Cord 4/10HP 115V
Product #:LGP-10-6911
Mfg. Part #:509209
- This product is obsolete.
- The superceded product was not found.
Franklin Electric 509209 9EN-CIM Little Giant Effluent Pump; 4/10 HP, 920 W, 115 V, 17 A, 60 Hz, 20 ft Cord, 80 gpm
Little Giant
Effluent Pump with Float Switch and 20' Cord 4/10HP 115V
Product #:LGP-10-6911
Mfg. Part #:509209
Description
Franklin Electric Little Giant 9EN-CIM Effluent Pump, Voltage Rating: 115 V, 17 A, Power Rating: 920 W, Frequency Rating: 60 Hz, 4/10 HP, 20 ft Cord, 1-1/2 Inch FNPT Discharge, 80 gpm at 5 ft, 70 gpm at 10 ft, 60 gpm at 15 ft, 45 gpm at 20 ft, 25 gpm at 2
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandLittle Giant
- Frequency Rating (Hz)60
- Shipping Dimensions9.6 x 6.8 x 9.15 inch
- Horsepower10 horse power
- MaterialCarbon, Cast Iron, Ceramic, Stainless Steel, Thermoplastic
- Voltage115V
- Amps High Speed17
- Amps Low Speed17
- Cord Length20 foot
- Each Product Weight30 pound
- Green or Energy Efficient ProductTrue
- Max Liquid Temperature140 degrees Fahrenheit
- Max Working Pressure14.1 pounds per square inch
- Minimum Sell Quantity1
- Power Rating920 watt
- Shut Off32 foot
- UPC Code010121140080
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

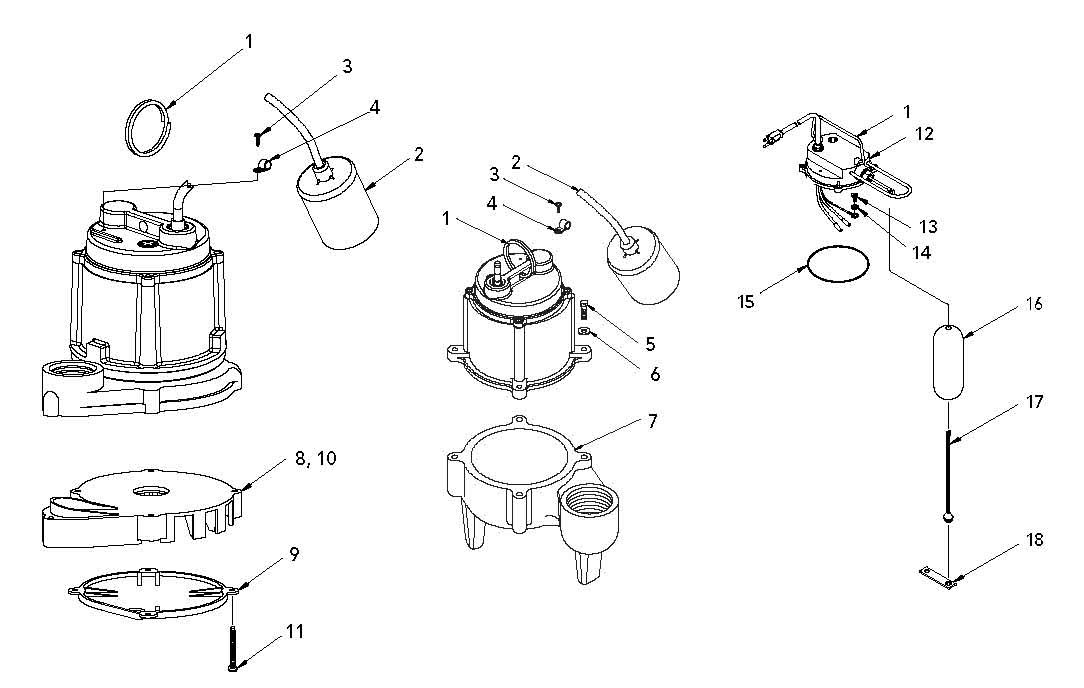

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
114100
Ring Handle
Product #:
Mfg #: 114100
1
2
2
950475
Remote Float Switch 115V, 20FT
Product #:
Mfg #: 950475
2
2
950476
Remote Float Switch 115V, 30FT
Product #:
Mfg #: 950476
2
2
950477
Remote Float Switch 230V, 20FT
Product #:
Mfg #: 950477
3
3
902516
Screw, Tapping #10-24 X 1/2
Product #:
Mfg #: 902516
4
4
927427
Loop Clamp
Product #:
Mfg #: 927427
5
5
915907
Bolt, Hex Head
Product #:
Mfg #: 915907
6
6
921103
Washer, Lock
Product #:
Mfg #: 921103
7
7
111415
Volute, 2 Discharge (Blue)
Product #:
Mfg #: 111415
7
7
111236
Volute, 2 Discharge (Black)
Product #:
Mfg #: 111236
7
7
111540
Volute, 3 Discharge (Blue)
Product #:
Mfg #: 111540
7
7
111541
Volute, 3 Discharge (Black)
Product #:
Mfg #: 111541
8
8
109460
Volute Gasket
Product #:
Mfg #: 109460
9
9
109153
Plate, Screen Base
Product #:
Mfg #: 109153
Wholegoods
There are no wholegoods available.
