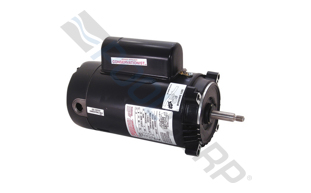

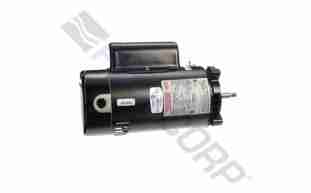

Century® CT1072 Two-Compartment Pool Filter Motor; 0.75 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft
Description
This versatile and reliable ODP Theaded Pool Filter Motor 0.75HP 115/230V is replacement part that can be relied upon when it matters the most. Made from high-quality parts and materials, this motor provides long-lasting dependable performance.
Branch Availability
content loaded
Specifications
- BrandCentury
- ApplicationPool
- Shipping Dimensions19 x 11 x 9.5 inch
- ColorBlack
- Frequency Rating (Hz)60
- Horsepower0.75 horse power
- Standards ApprovalsCSA Certified
- Voltage115V, 230V
- Ambient Temperature50 degrees Celsius
- Amps High Speed11
- Amps Low Speed5.5
- Bearing TypeSealed Ball
- Commercial, Residential, or ProfessionalResidential
- Diameter6.5 inch
- Duty CycleContinuous
- Each Product Weight24.6 pound
- Efficiency GroupHigh
- Flange MaterialAluminum
- Frame MaterialRolled Steel
- Green or Energy Efficient ProductTrue
- Insulation ClassB
- Minimum Sell Quantity1
- Motor Capacitor TypeStart, Run
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity30
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1.5
- Shaft DesignThreaded
- Shaft Diameter0.625 inch
- Shaft Length2.5625 inch
- Shaft Material303 Stainless Steel
- Thrust HP1.13
- UPC Code786674017253
