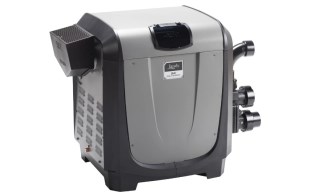

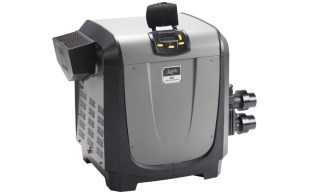

Jandy JXi JXI260N Natural Gas Low-NOx Pool and Spa Heater 260K BTU
Description
Jandy JXi JXI260N Natural Gas Low-NOx Pool and Spa Heater 260K BTU sets the standard in pool and spa heating technology with its ultra-compact size, lightweight design and installation flexibility — making it a top choice for pool professionals and pool owners everywhere. The high-efficiency, low-NOx JXi is available in three BTU sizes, 200K, 260K, 399K, and offered in both natural and propane gas models.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandJandy
- ApplicationIndoor, Outdoor, Pool, Spa
- Shipping Dimensions40 x 23.5 x 28.5 inch
- BTU Input260000 British thermal unit
- Cabinet Depth22.1 inch
- Cabinet Height26.5 inch
- Cabinet Width22.9 inch
- ChannelPool Equipment
- ColorGray
- Commercial, Residential, or ProfessionalProfessional, Residential
- Control TypeDigital Electric
- Each Product Weight150 pound
- FinishMatte
- Flow Rate Max100 gal/min
- Flow Rate Min30 gal/min
- Flue Diameter7 inch
- Frequency Rating (Hz)60
- Fuel TypeNatural Gas
- Gas Connection0.75 inch
- Gas Connection FITNPT
- Green or Energy Efficient ProductTrue
- Header MaterialStainless Steel
- Heat Exchanger MaterialCopper
- Heater ColorGray
- High Altitude ModelTrue
- Housing FinishMatte
- IncludesVersa Plumb® Sweep Elbow (1), 2" Universal Union Tailpiece (2), 2" Universal Union Cap (1), 2" Universal Union O-ring (3), 2" Universal Union Nut (3)
- Indoor Vent Pipe Diameter6 inch
- Minimum Sell Quantity1
- Pallet Quantity2
- PhaseSingle
- Product Depth22.1 inch
- Product Height26.5 inch
- Product Weight120 pound
- Product Width21.6 inch
- Standards ApprovalsCSA Certified, ANSI Certified
- Thermal Efficiency0.84
- Tubing MaterialCopper
- Voltage120V, 240V
- Water Connection 12 inch
- Water Connection 22 inch
- UPC Code052337066518
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

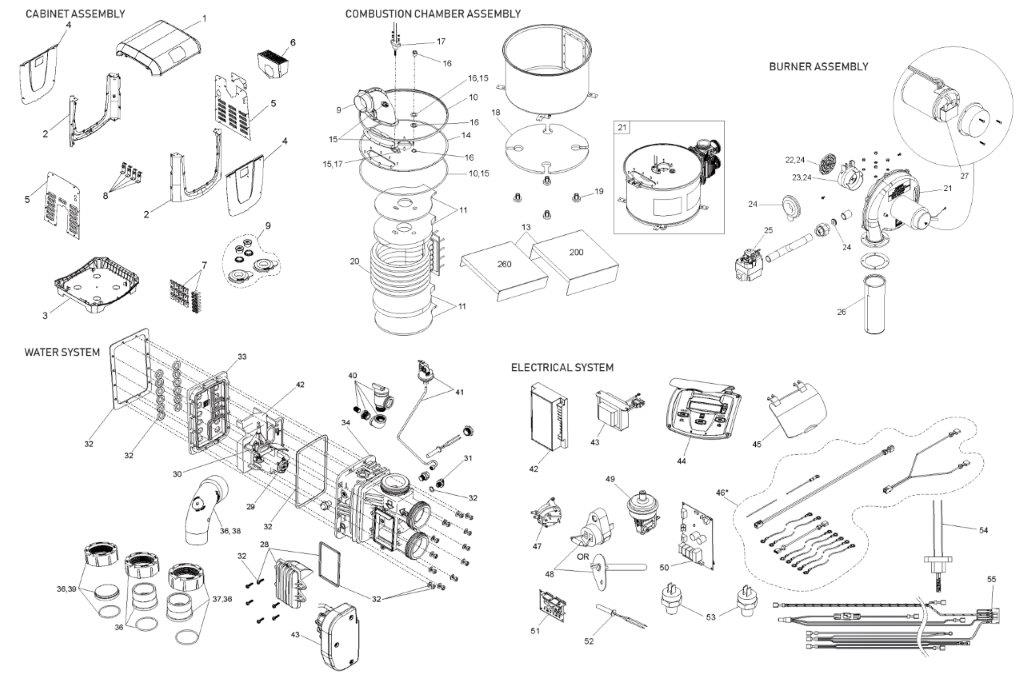

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
R0592400
LAR-151-3239
Product #: LAR-151-3239
Mfg #: R0592400
Notes:
Cabinet Assembly2
2
R0592500
LAR-151-3256
Product #: LAR-151-3256
Mfg #: R0592500
Notes:
Cabinet Assembly3
3
R0592600
LAR-151-3257
Product #: LAR-151-3257
Mfg #: R0592600
Notes:
Cabinet Assembly4
4
R0592700
LAR-151-3258
Product #: LAR-151-3258
Mfg #: R0592700
Notes:
Cabinet Assembly5
5
R0592900
LAR-151-3259
Product #: LAR-151-3259
Mfg #: R0592900
Notes:
Cabinet Assembly6
6
R0593100
LAR-151-3200
Product #: LAR-151-3200
Mfg #: R0593100
Notes:
Cabinet Assembly7
7
R0593300
LAR-151-3260
Product #: LAR-151-3260
Mfg #: R0593300
Notes:
Cabinet Assembly8
8
R0593400
LAR-151-3203
Product #: LAR-151-3203
Mfg #: R0593400
Notes:
Cabinet Assembly9
9
R0591800
LAR-151-0606
Product #: LAR-151-0606
Mfg #: R0591800
Notes:
Cabinet Assembly9
9
R0590200
LAR-151-3235
Product #: LAR-151-3235
Mfg #: R0590200
Notes:
Combustion Chamber Assembly10
10
R0590400
LAR-151-3238
Product #: LAR-151-3238
Mfg #: R0590400
Notes:
Combustion Chamber Assembly11
11
R0590500
LAR-151-3261
Product #: LAR-151-3261
Mfg #: R0590500
Notes:
Combustion Chamber Assembly13
13
R0590700
LAR-151-3262
Product #: LAR-151-3262
Mfg #: R0590700
Notes:
Combustion Chamber Assembly14
14
R0590800
LAR-151-3234
Product #: LAR-151-3234
Mfg #: R0590800
Notes:
Combustion Chamber Assembly15
15
R0590900
LAR-151-3227
Product #: LAR-151-3227
Mfg #: R0590900
Notes:
Combustion Chamber AssemblyWholegoods
There are no wholegoods available.
