Echo® eForce® DHC-2200BT 22" Hedge Trimmer 56V Bare Tool
Description
Designed for professionals, the DHC-2200 features 22 in. RazorEdge® blades along with an intelligent management system that optimizes motor speed, power delivery and battery usage.
Documents
Branch Availability
content loaded
Specifications
- BrandEcho
- ApplicationLandscaping
- Shipping Dimensions52.13 x 11.2 x 7.9 inch
- ColorOrange, Black
- Commercial, Residential, or ProfessionalProfessional
- Each Product Weight7.5 pound
- Minimum Sell Quantity1
- UPC Code743184025826
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Parts & Schematics
content loaded

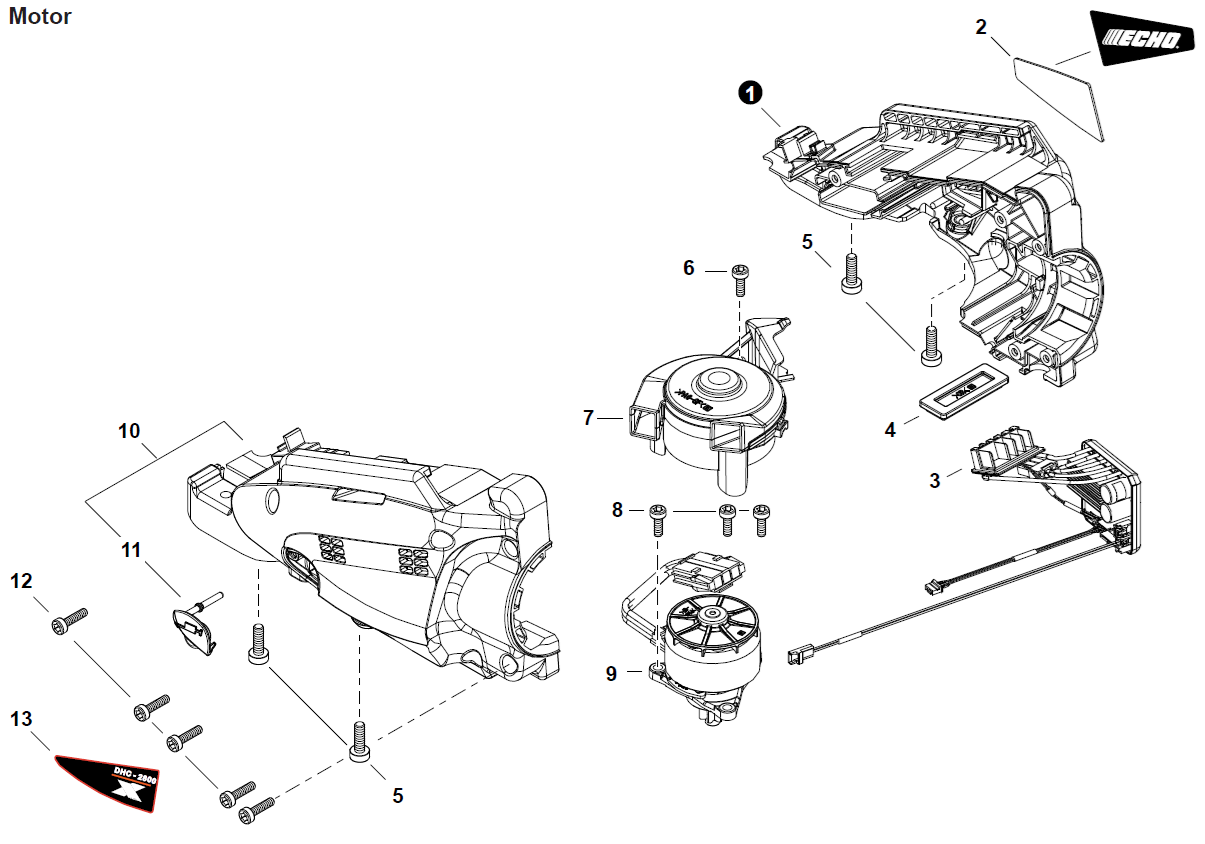

Mfg #
Product #
Description
Notes
1
1
A539000540
COVER, MOTOR - RIGHT
Product #:
Mfg #: A539000540
Notes:
Motor2
2
X502001340
LABEL - ECHO
Product #:
Mfg #: X502001340
Notes:
Motor3
3
A047000640
CONTROL BOARD ASSY
Product #:
Mfg #: A047000640
Notes:
Motor4
4
V420005780
CUSHION
Product #:
Mfg #: V420005780
Notes:
Motor5
8
7
7
P100013060
CASE ASSY, FAN
Product #:
Mfg #: P100013060
Notes:
Motor9
9
A054000370
MOTOR ASSY
Product #:
Mfg #: A054000370
Notes:
Motor10
10
P100013460
COVER ASSY, MOTOR - LEFT
Product #:
Mfg #: P100013460
Notes:
Motor11
11
X638000010
CAP, CUP GREASE
Product #:
Mfg #: X638000010
Notes:
Motor12
12
V804000170
BOLT, TORX 4 x 16
Product #:
Mfg #: V804000170
Notes:
Motor13
13
X543006260
LABEL - MODEL DHC-2800
Product #:
Mfg #: X543006260
Notes:

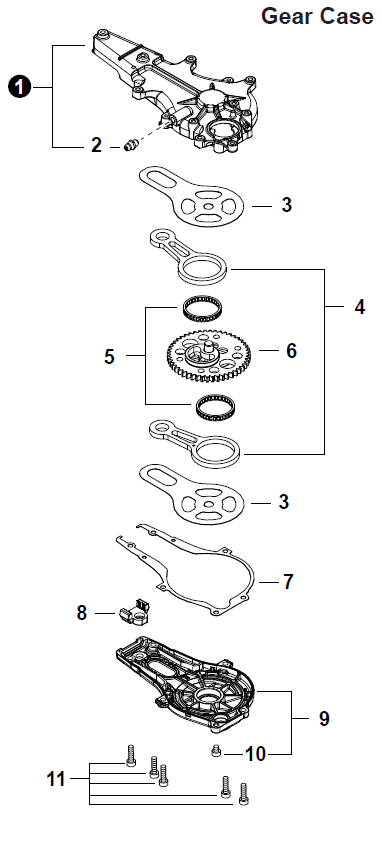

Motor1
1
P100013100
GEAR CASE ASSY
Product #:
Mfg #: P100013100
Notes:
Gear Case2
2
V187000080
SHI-591-1205
Product #: SHI-591-1205
Mfg #: V187000080
Notes:
Gear Case3
3
C603001270
PLATE, SIDE
Product #:
Mfg #: C603001270
Notes:
Gear CaseWholegoods
There are no wholegoods available.
